CP4285

6151740630

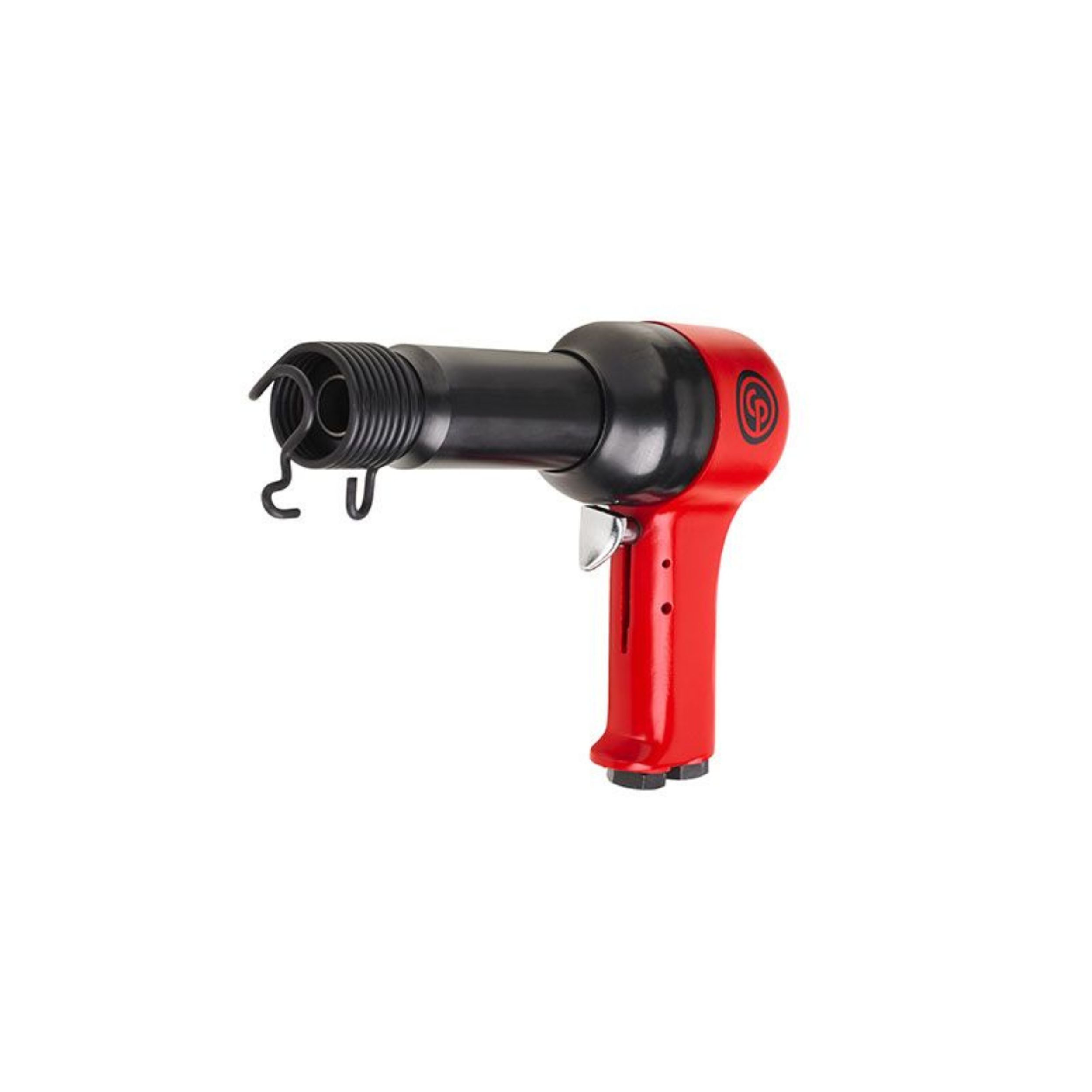

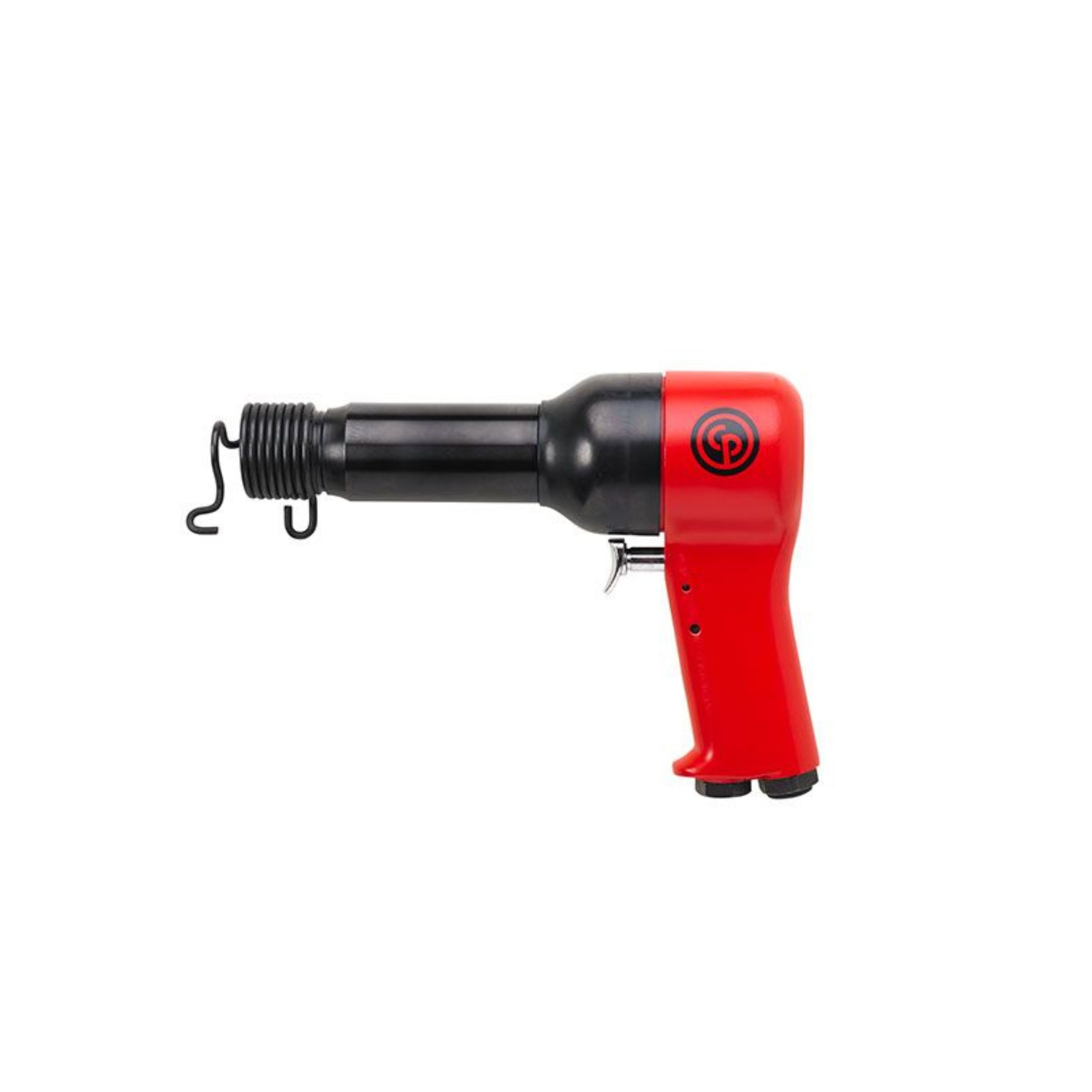

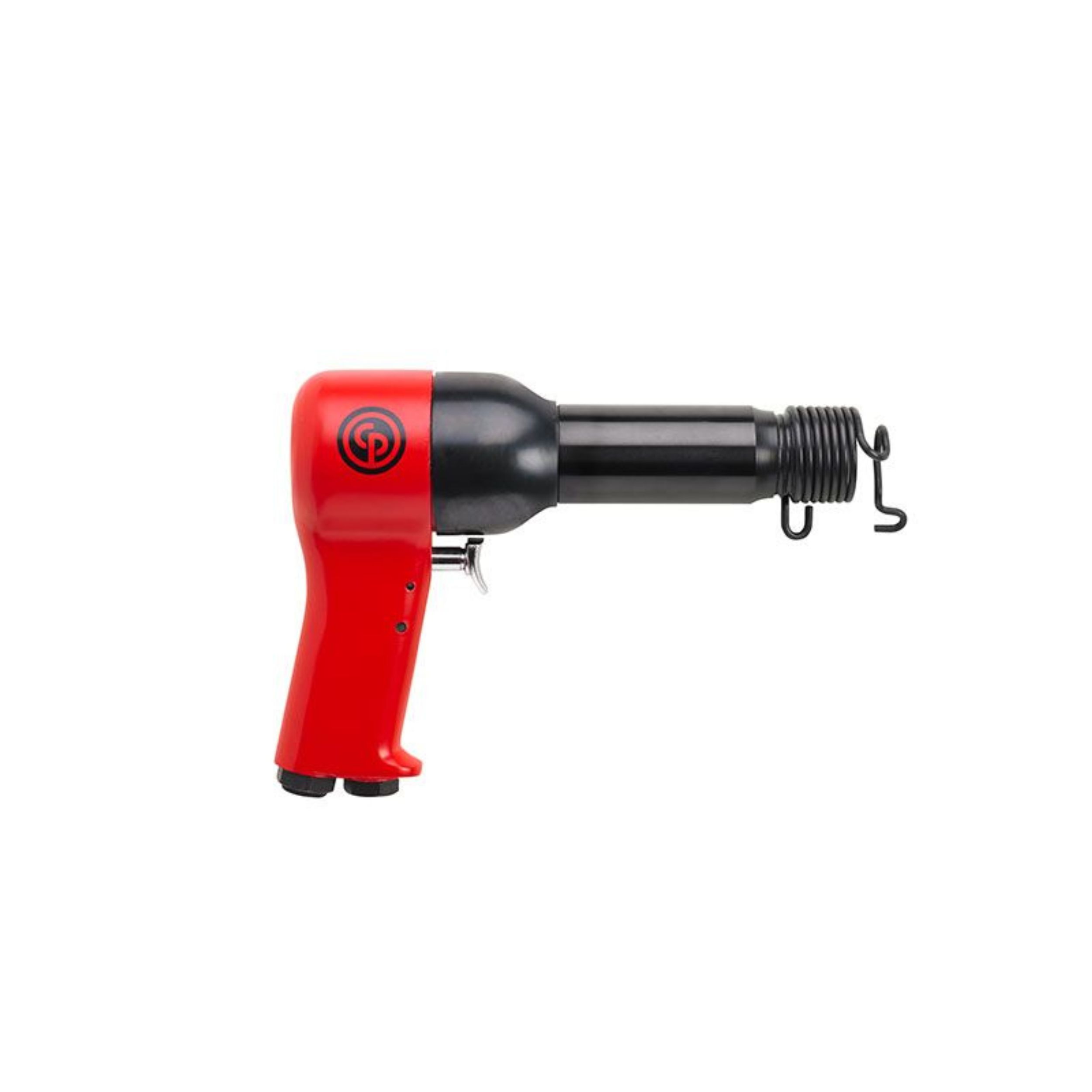

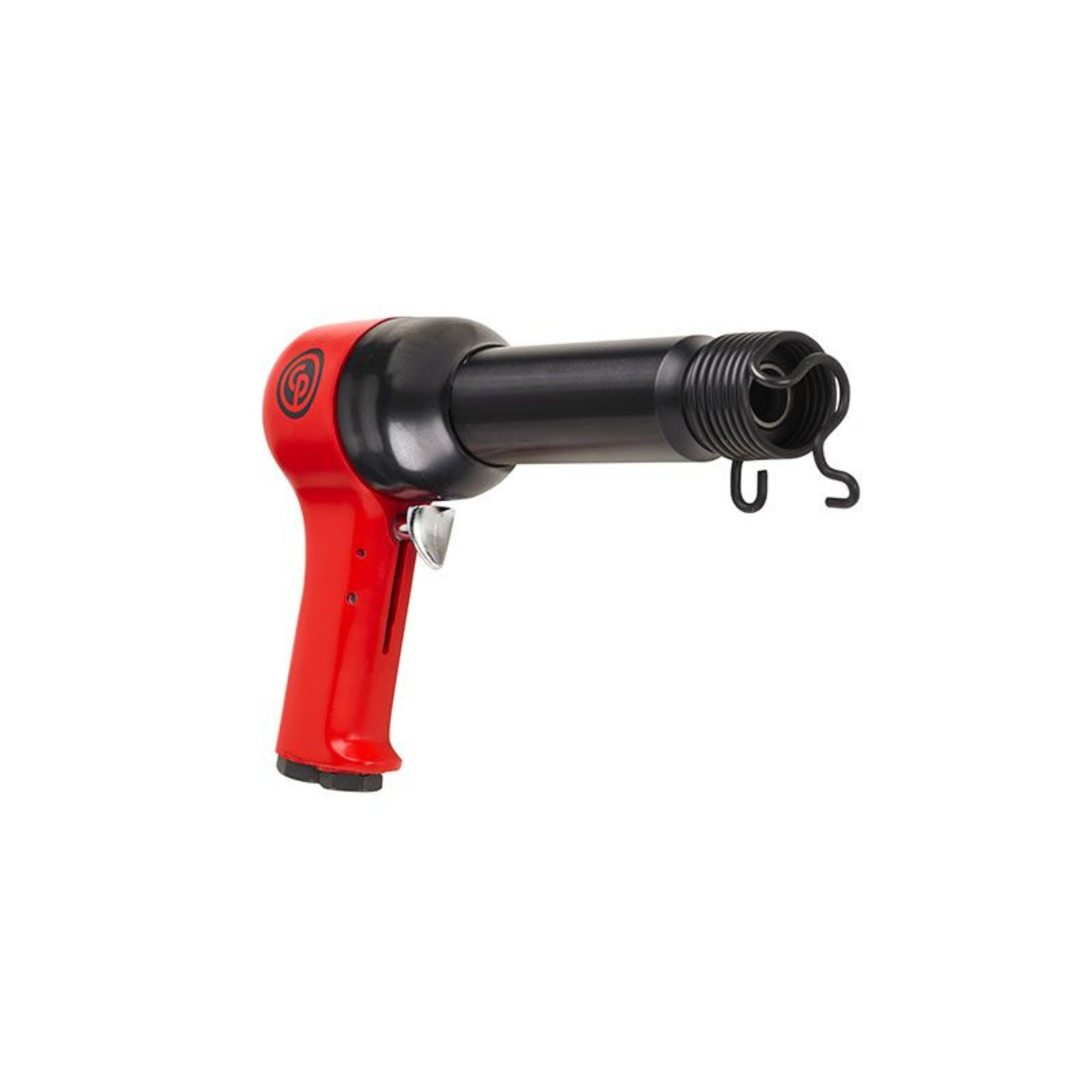

Type 5x pneumatic rivet hammer

Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structure for aerospace.
The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X).
Country of origin is TW. Customs tariff is 84671900

SEND INQUIRY

Category: CP42 Series - Rivet Hammers

Technical Specifications

Speed
Air consumption at free speed (Normo)	12.3 l/sNl
Air consumption at free speed	2.8 l/s

Air information
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	6.3 bar
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	9.5 mm

Noise & vibrations
Sound Power	113 dB(A)
Sound Pressure	102 dB(A)
Uncertainty vibration-K	4.5 m/s²
Vibration	24.7 m/s²

Size & Weight
Bore diameter	19 mm
Height (H)	160.3 mm
Length (L)	230 mm
Width (W)	63.5 mm
Stroke	68 mm
Weight	2.1 kg

Design & Functions
Blow per minute	1600
Chisel shank diameter (in)	0.498
Chisel shank diameter (mm)	12.7
Energy	9 J
Main Material type	Aluminium, Steel
Max rivet size aluminium (in)	1/4
Max rivet size aluminium (mm)	6.4
Max rivet size steel (in)	3/16
Max rivet size steel (mm)	4.8
Rivet hammer type	5X
Starting system	Trigger
