CP4287

6151740640

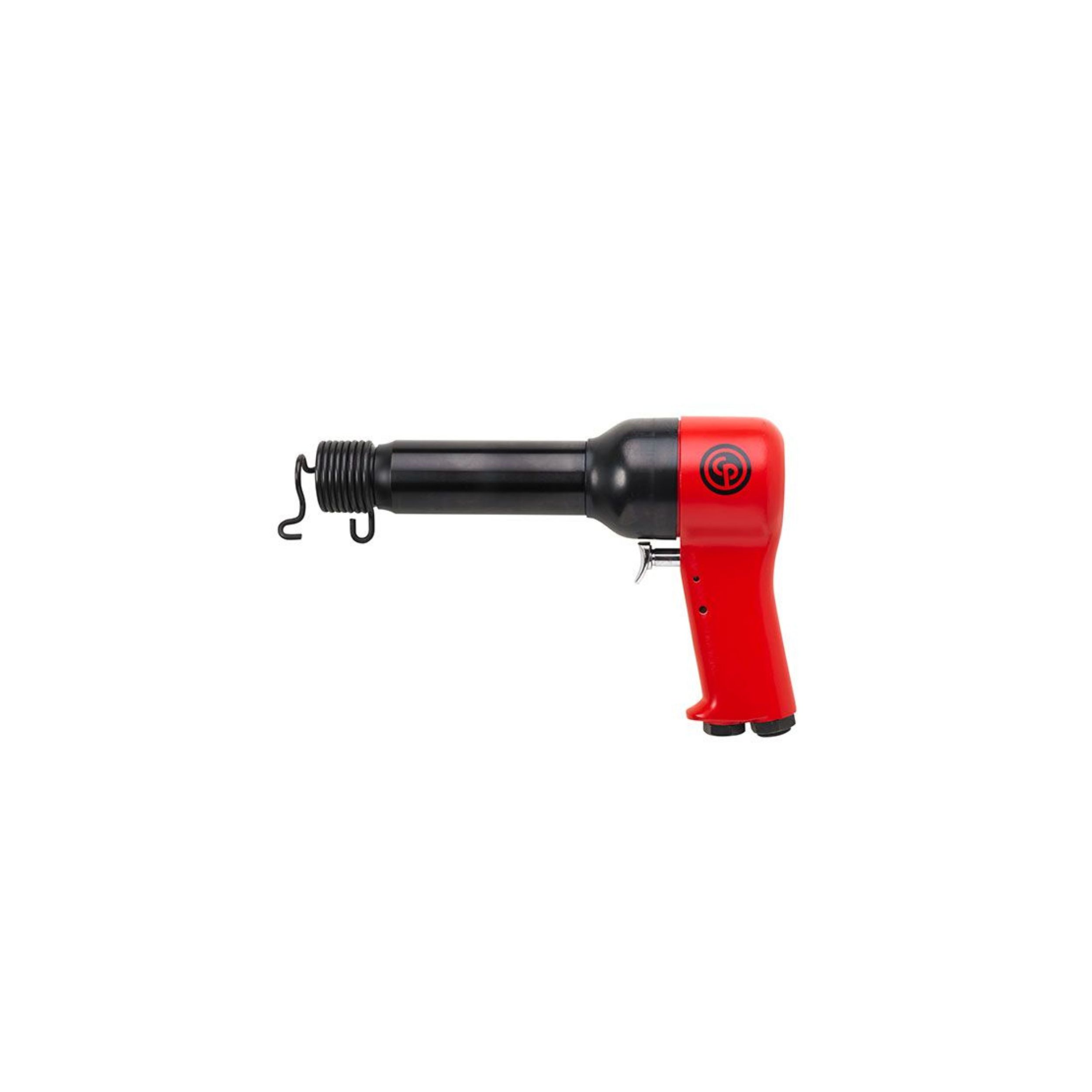

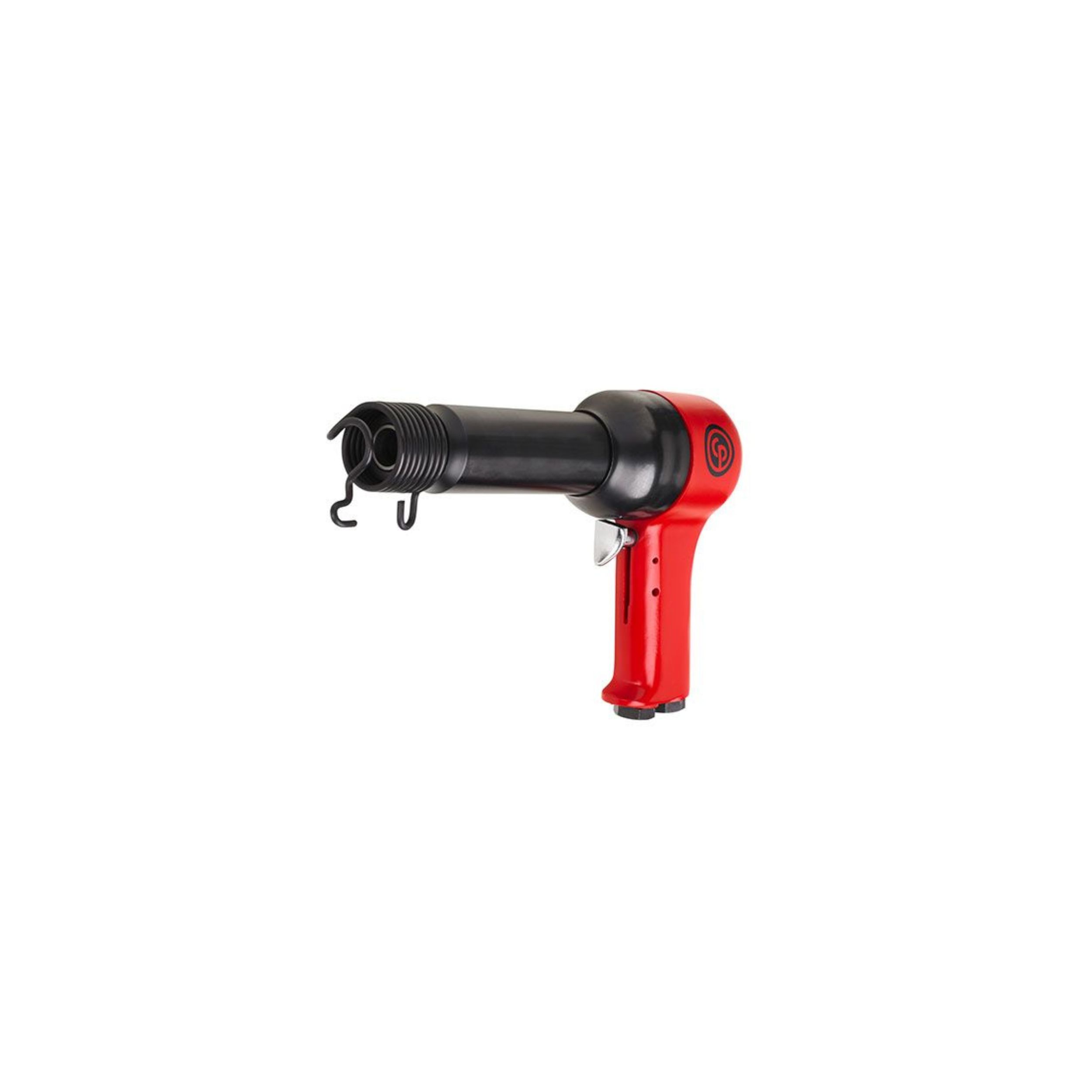

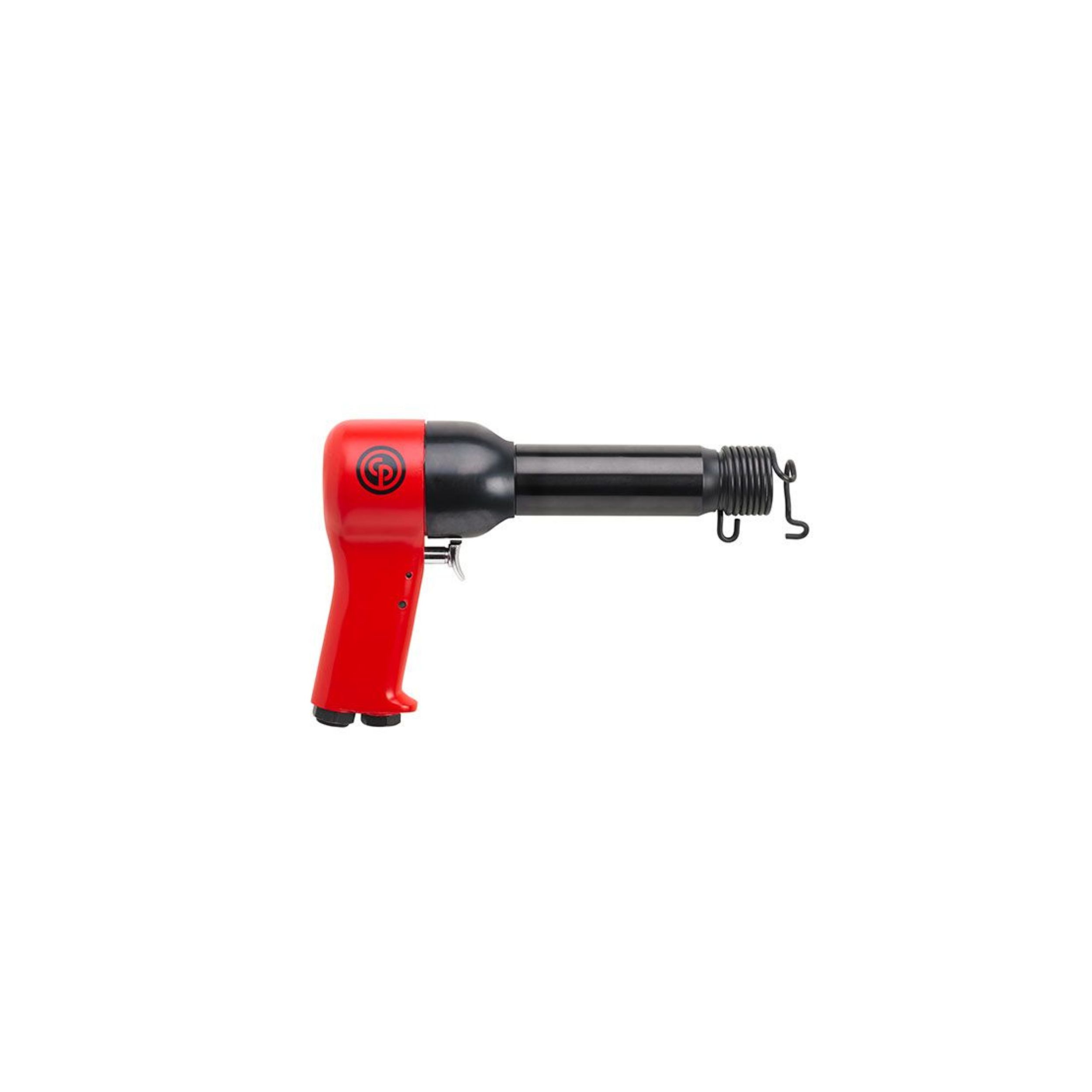

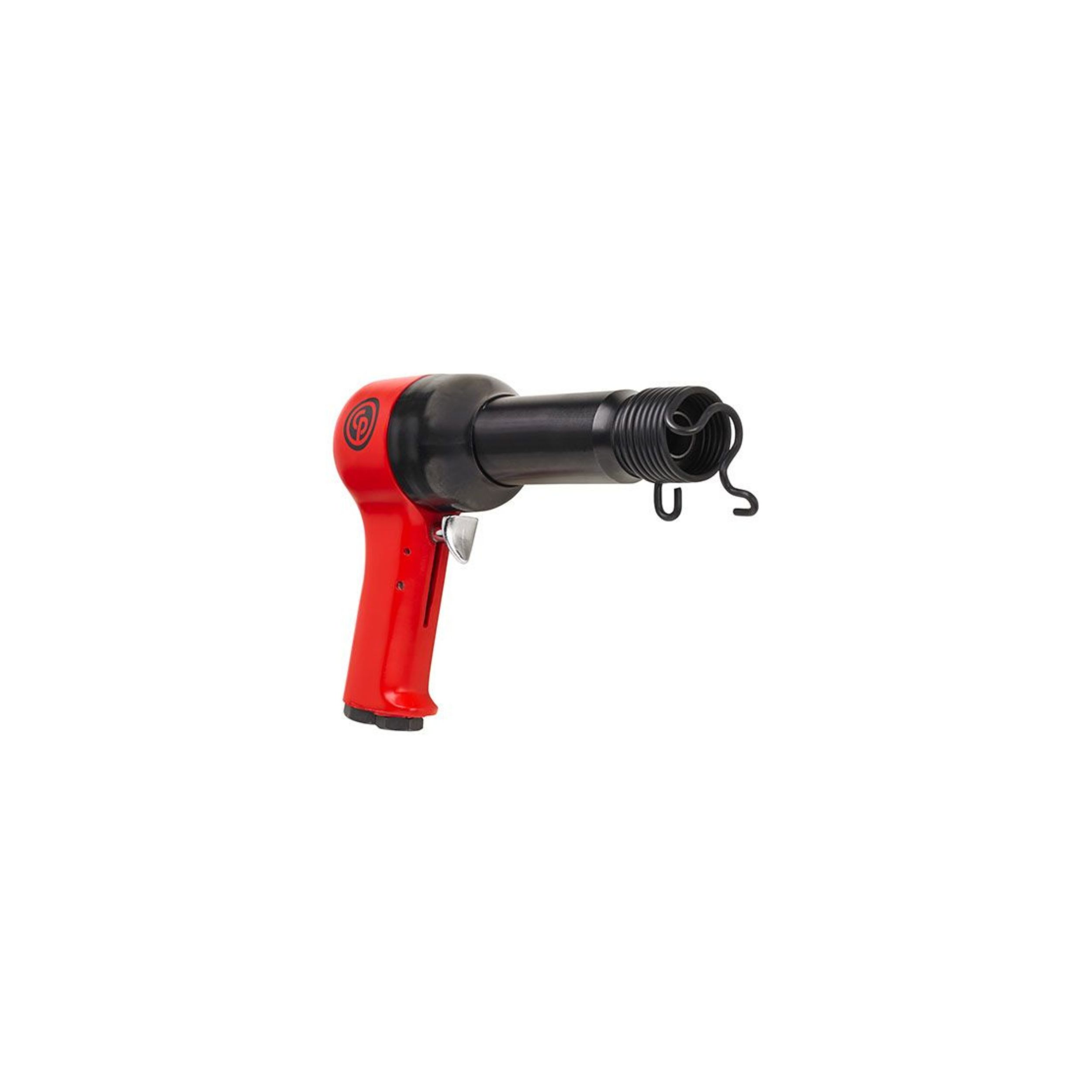

Type 7x pneumatic rivet hammer

Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structure for aerospace.
The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X).
Country of origin is TW. Customs tariff is 84671900

SEND INQUIRY

Category: CP42 Series - Rivet Hammers

Technical Specifications

Speed
Air consumption at free speed (Normo)	12.3 l/sNl
Air consumption at free speed	2.8 l/s

Air information
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	6.3 bar
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	9.5 mm

Noise & vibrations
Sound Power	114 dB(A)
Sound Pressure	103 dB(A)
Uncertainty vibration-K	4.7 m/s²
Vibration	26.3 m/s²

Size & Weight
Bore diameter	19 mm
Height (H)	160.3 mm
Length (L)	256 mm
Width (W)	63.5 mm
Stroke	98 mm
Weight	2.4 kg

Design & Functions
Blow per minute	1140
Chisel shank diameter (in)	0.498
Chisel shank diameter (mm)	12.7
Energy	13 J
Main Material type	Aluminium, Steel
Max rivet size aluminium (in)	5/16
Max rivet size aluminium (mm)	7.9
Max rivet size steel (in)	1/4
Max rivet size steel (mm)	6.4
Rivet hammer type	7X
Starting system	Trigger
