| Torque | |
|---|---|
| Max working torque fwd | 300 Nm |
| Max torque reverse | 1950 Nm |
| Min working torque fwd | 1080 Nm |
| Torque limited | No |
| Air information | |
| Air inlet thread size (in) | 3/8 |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Noise & vibrations | |
| Sound Power | 107.8 dB(A) |
| Sound Pressure | 96.8 dB(A) |
| Uncertainty vibration-K | 1.5 m/s² |
| Vibration | 13 m/s² |
| Speed | |
| Free Speed | 5500 rpm |
| Size & Weight | |
| Height (H) | 220 mm |
| Length (L) | 200 mm |
| Width (W) | 84 mm |
| Side to Center | 110 mm |
| Weight | 3.15 kg |
| Design & Functions | |
| Blow per minute | 1200 |
| Body | Composite |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mechanism | Twin hammer |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Pin retainer |
| Starting system | Trigger |

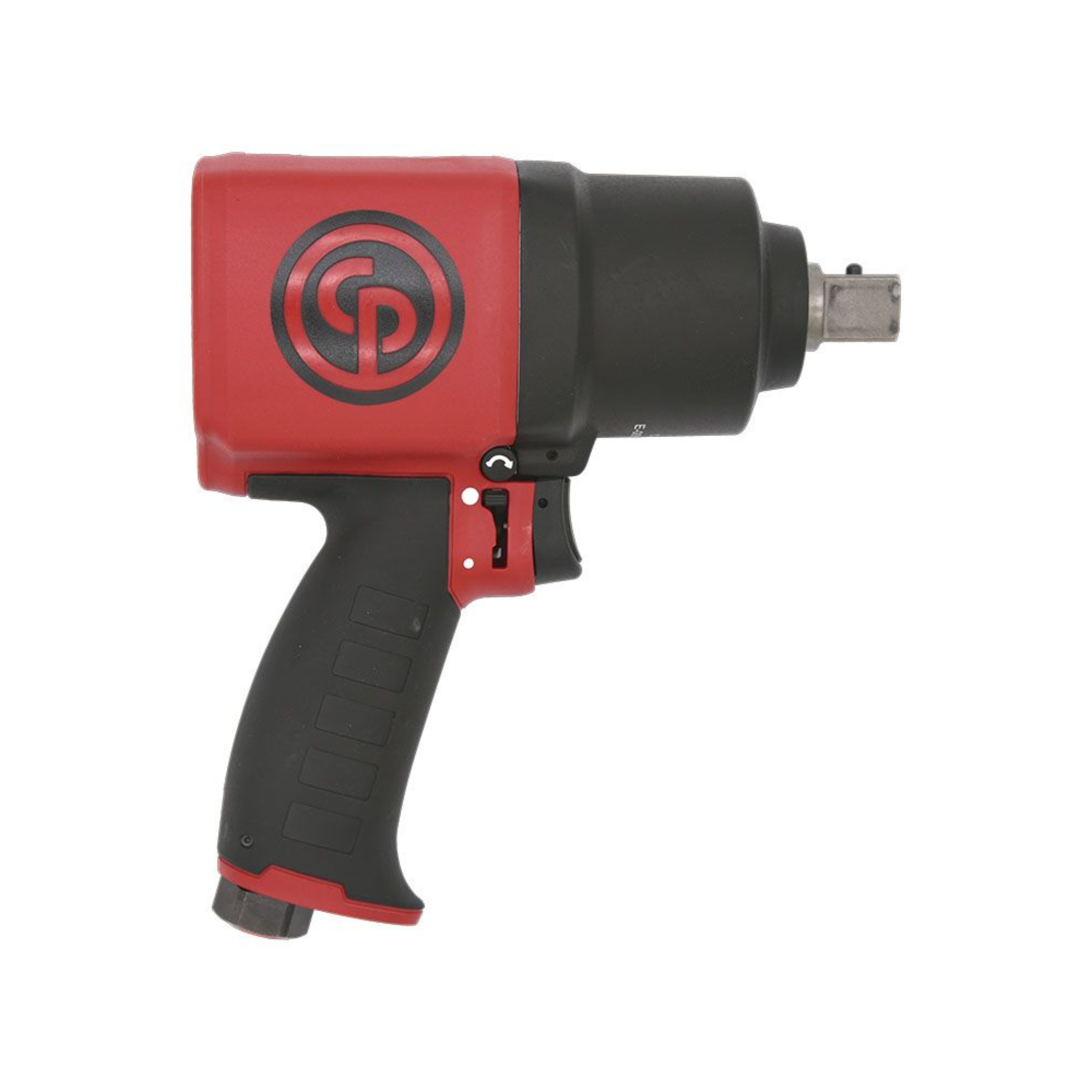

CP7769-P PIN STYLE IMPACT WRENCH
Part No: 8941077692
Designed for general maintenance, this impact wrench is comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector – S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769 offers high productivity. The twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact. The CP7769 is composed of 4 models: 3/4″ short anvil with Friction Ring Retainer, 3/4″ short anvil with Pin Retainer, 3/4″ long anvil (6″ anvil) and 1″ short anvil.
Country of origin is TW. Customs tariff is 84671190
| Dimensions | 24.6 × 10.6 × 24.8 cm |
|---|
