CP7776

Part No: 8941077760

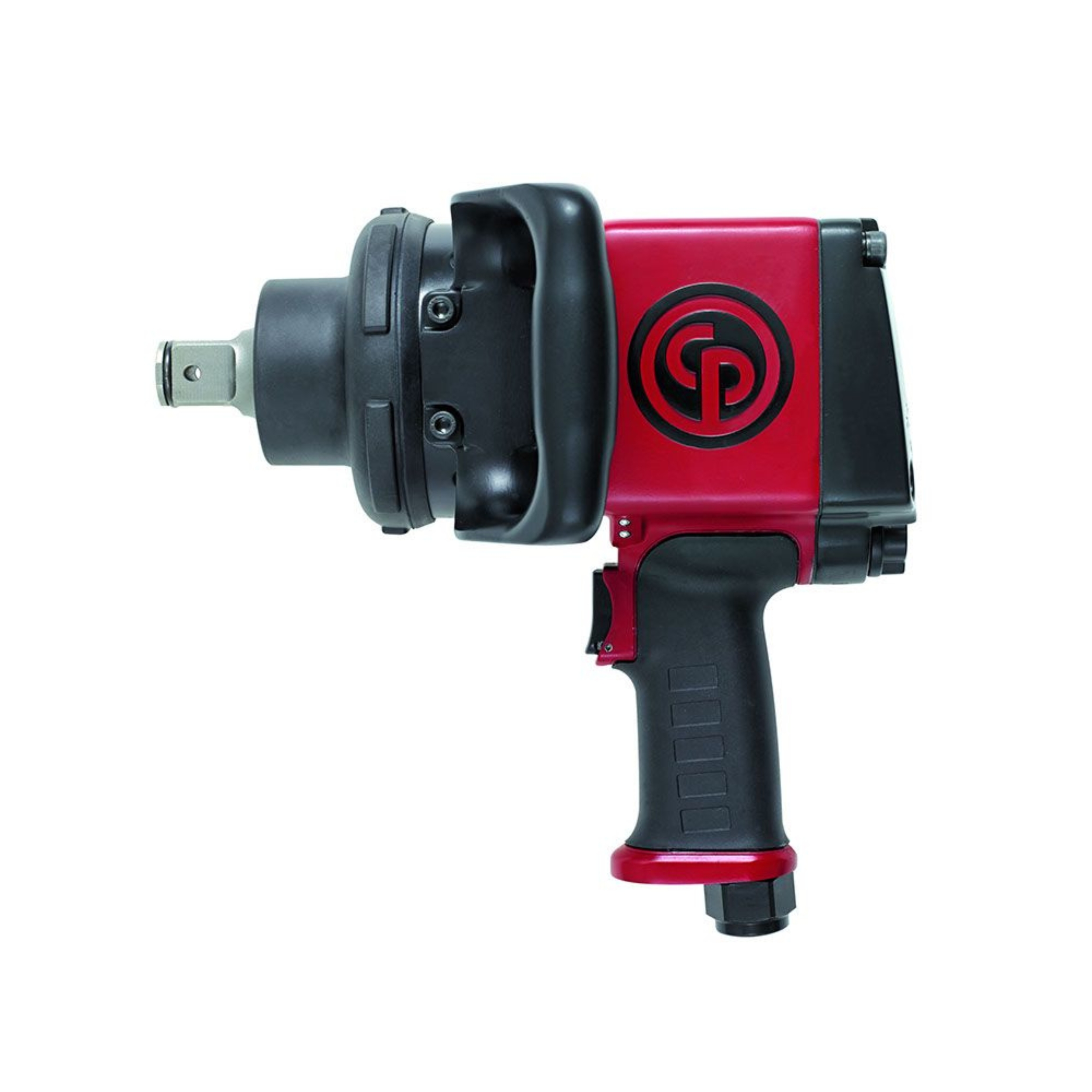

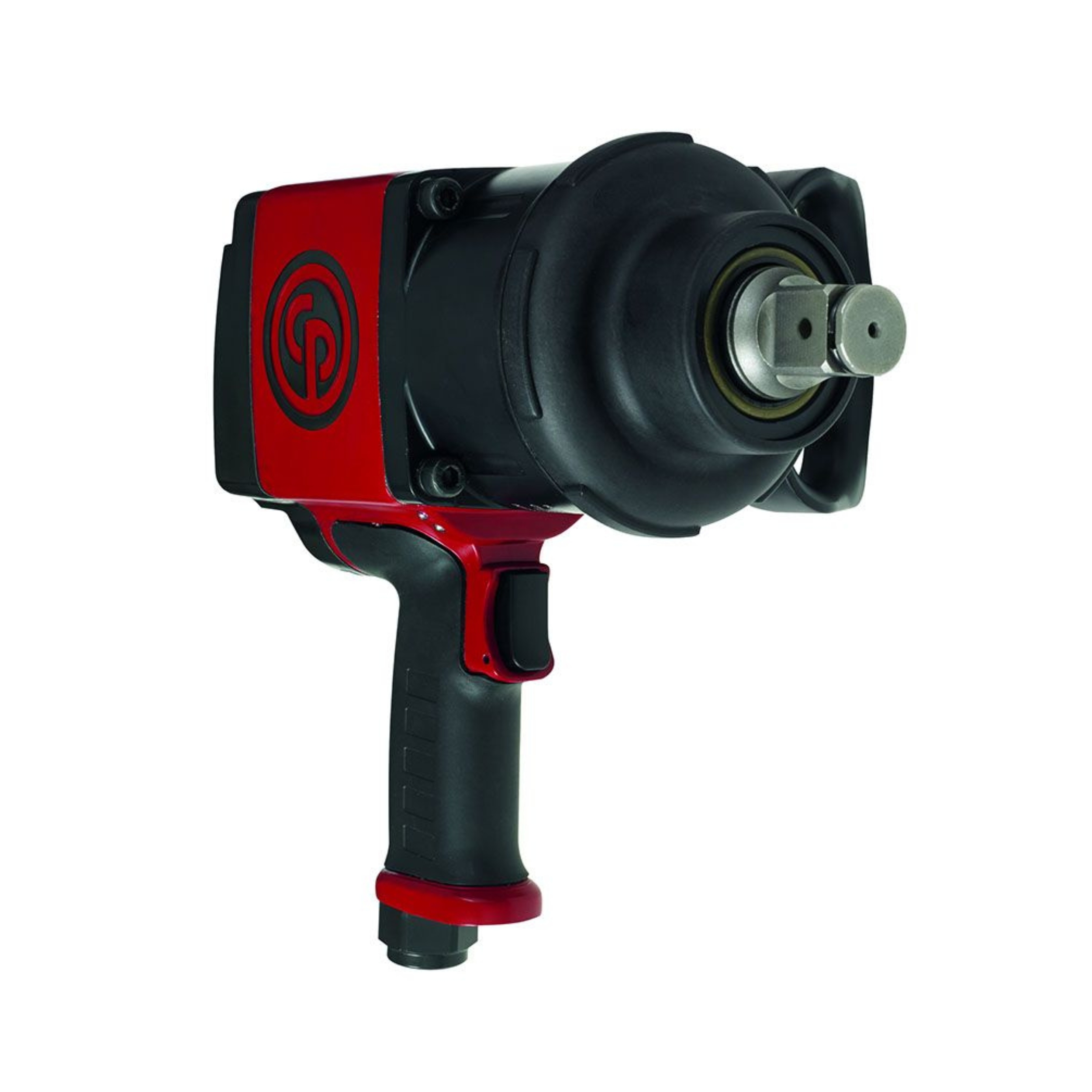

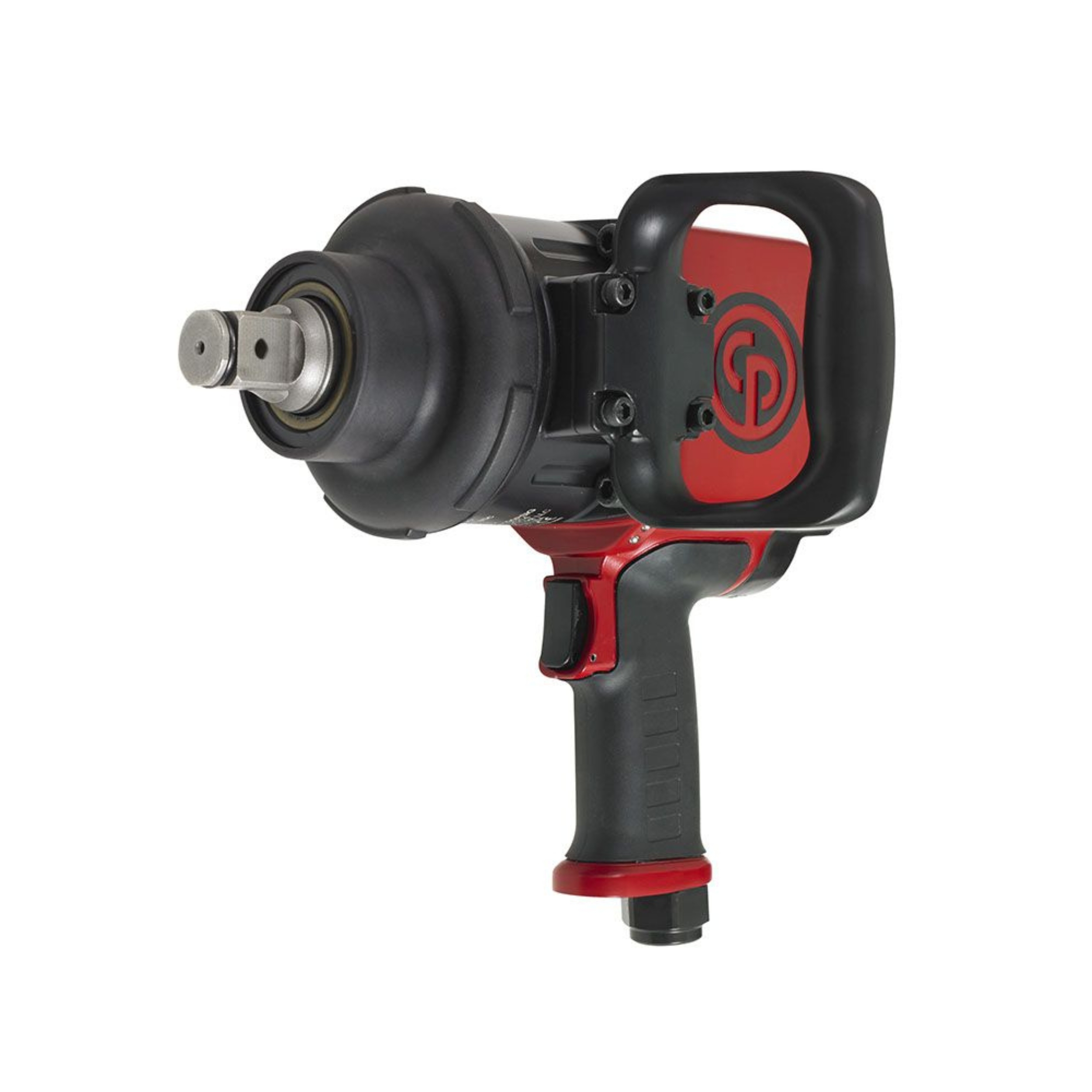

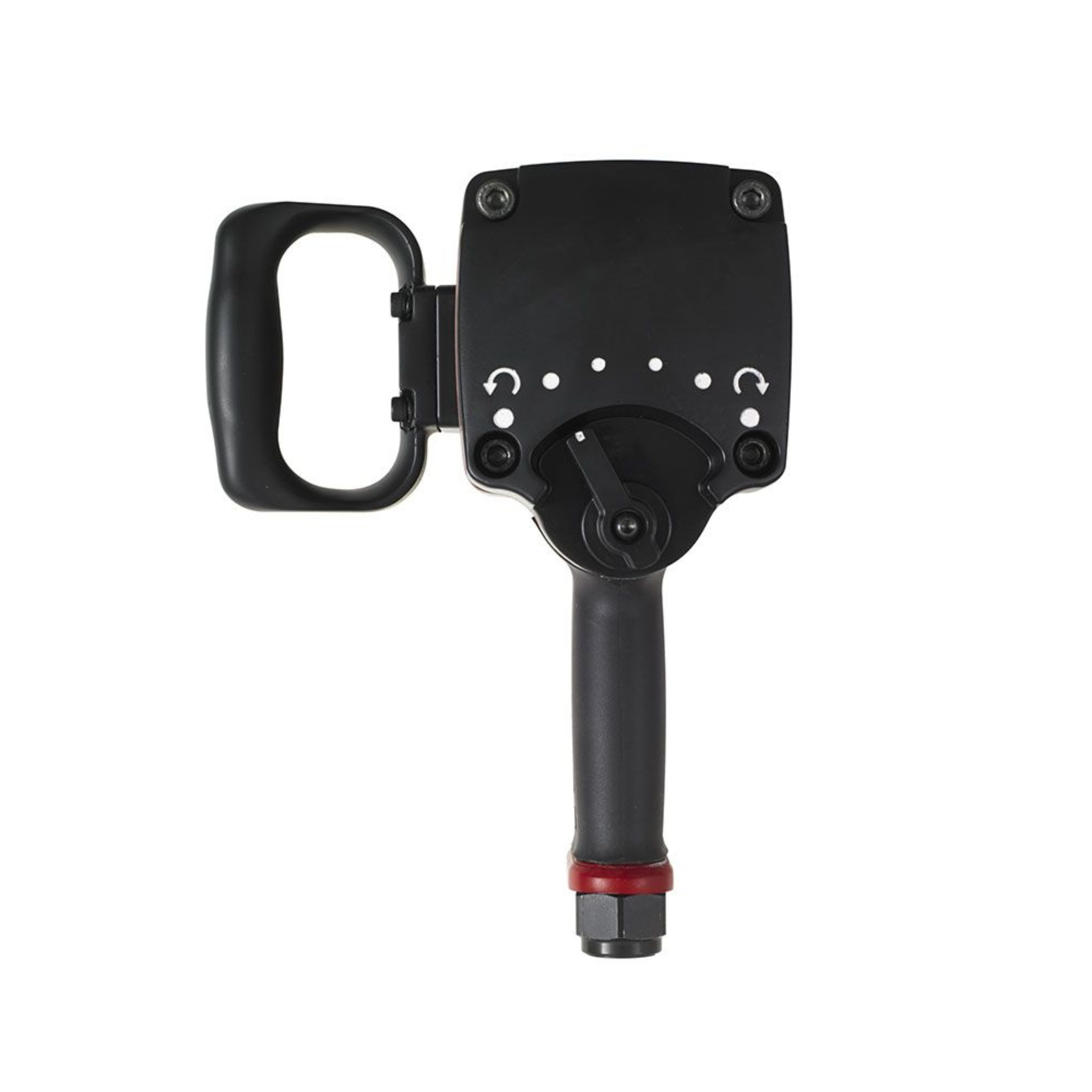

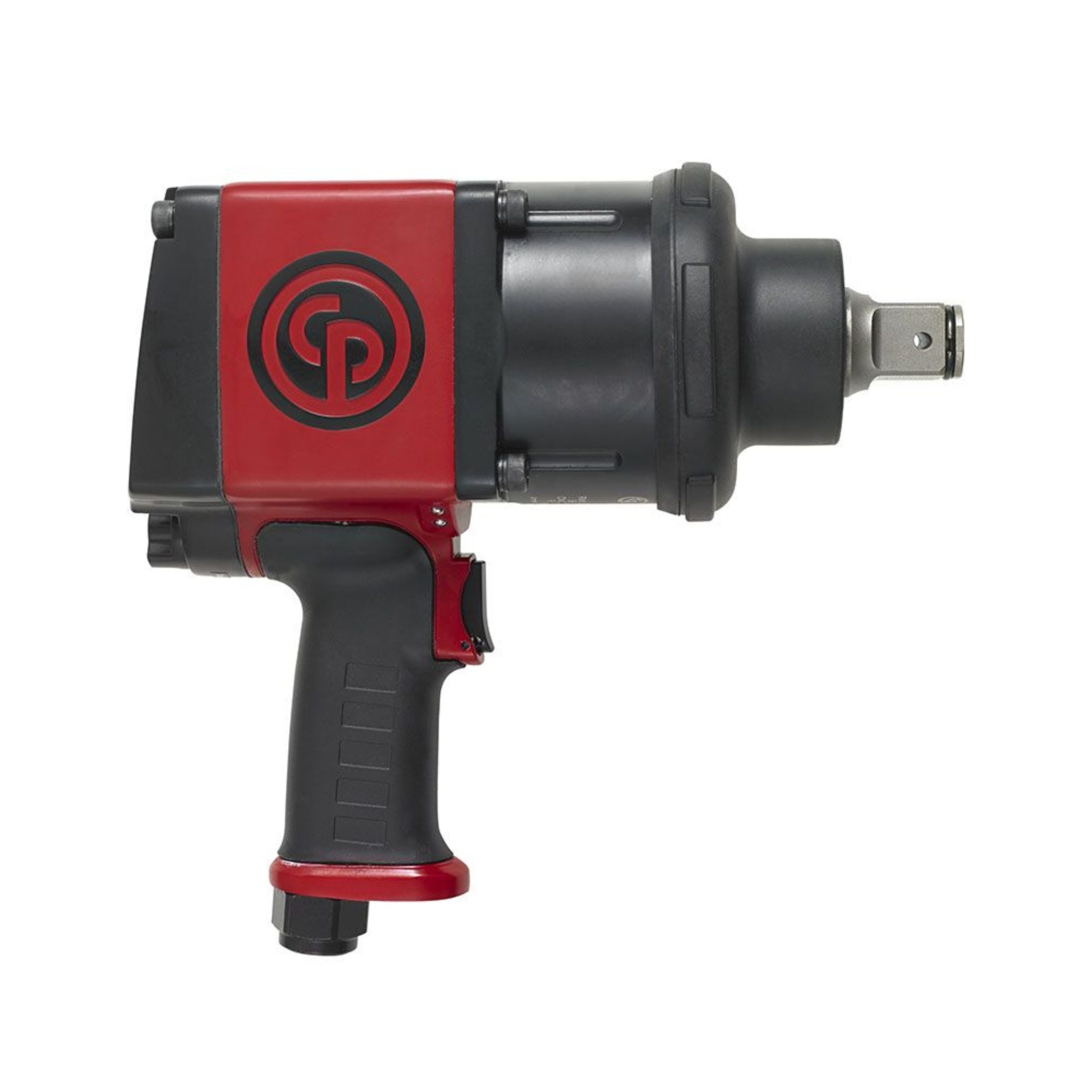

1″ Pneumatic impact wrench

For use in any general maintenance environment with the CP7776 1″ impact wrench designed for bolting & unbolting applications. Delivers a reverse high torque up to 1,770 ft.lbs / 2,400 Nm. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7776 series is composed of 2 models: 1″ short anvil and 1″ long anvil (6″ anvil).Country of origin is TW. Customs tariff is 84671190
SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 2070 Nm
Max torque reverse 2400 Nm
Min working torque fwd 955 Nm
Torque limited No

Air information
Air consumption at load 15 l/s
Air inlet thread size (in) 1/2
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.5 in
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 104 dB(A)
Sound Pressure 93 dB(A)
Uncertainty vibration-K 2.8 m/s²
Vibration (m/s²) 8.7
Vibration 8.7 m/s²

Speed
Free Speed 5000 rpm

Size & Weight
Length (L) 289 mm
Power weight ratio 210 Nm/kg
Side to Center 109 mm
Weight 11.2 kg

Design & Functions
Body Aluminium
Clutch housing Aluminium
Clutch lubrication type Grease
Handle type Pistol
Impact mecanism Pinless rocking dog
Output drive size (in) 1
Output drive type Sq
Output retainer type Dual
Side handle Yes
Starting system Trigger
