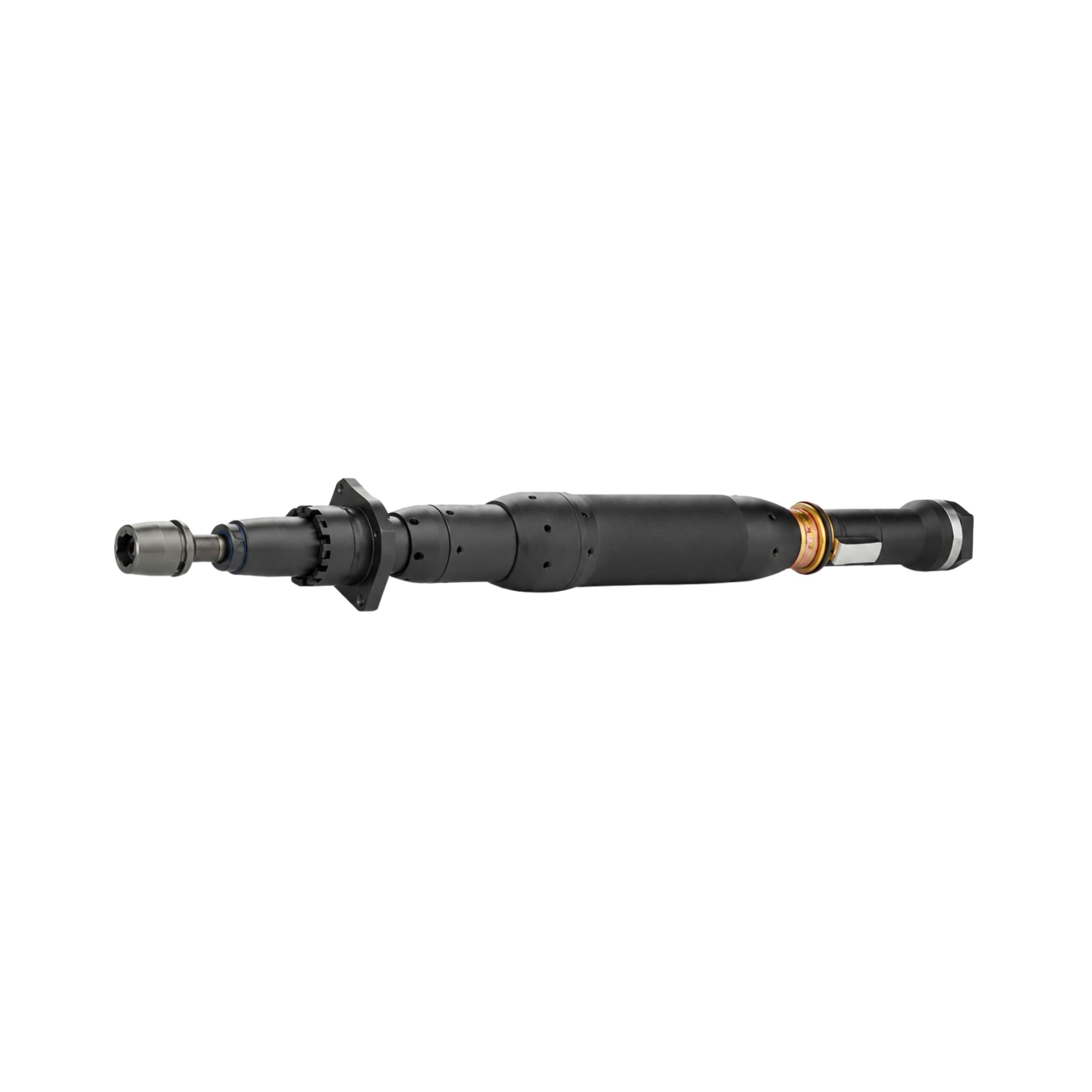

ETD ST101-1000-25-T50

ETD ST101-1000-25-T50

8433218578

• Model type : Straight
• Torque range max : 1,000 Nm
• Torque range min : 250 Nm
• Torque range max : 737 ft lb
• Torque range min : 184 ft lb
• Weight : 9.8 kg
• Weight : 21.6 lb
• Speed : 100 r/min
• Square drive : 1 inch
• Length : 754 mm
• CS distance : 45 mm
• Sound pressure : <70 dB(A)
• Sound standard : ISO15744
• CCC certified : Yes
• KC ID : R-REI-50A-ETVST101
• KC certified : Yes
• EAC certified : Yes
• Motor voltage type : 3 a.c.
• EC standard : EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1
• Motor power : 1,500 W
• Motor voltage : 200 V
• Tensor : ST
• WEEE : 4 – Large equipment >50cm
• EU directives : 2006/42/EC, 2011/65/EU, 2014/30/EU
• Spline/Mounting : –
