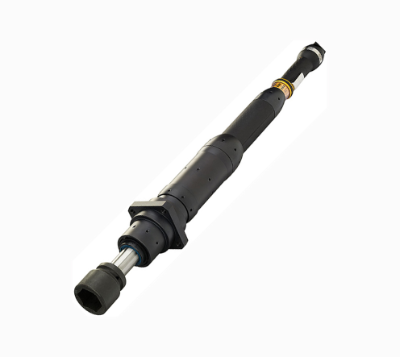

ETD ST101-1000-25-T50F
8433218589
- Model type : Straight
- Torque range max : 1,000 Nm
- Torque range min : 250 Nm
- Torque range max : 737 ft lb
- Torque range min : 184 ft lb
- Weight : 9.8 kg
- Weight : 21.6 lb
- Speed : 100 r/min
- Square drive : 1 inch
- Length : 755 mm
- CS distance : 45 mm
- Sound pressure : <70 dB(A)
- Sound standard : ISO15744
- CCC certified : Yes
- KC ID : R-REI-50A-ETVST101
- KC certified : Yes
- EAC certified : Yes
- Motor voltage type : 3 a.c.
- EC standard : EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1
- Motor power : 1,500 W
- Motor voltage : 200 V
- Tensor : ST
- WEEE : 4 – Large equipment >50cm
- EU directives : 2006/42/EC, 2011/65/EU, 2014/30/EU
- Spline/Mounting : –
