CP2611

    6151922611

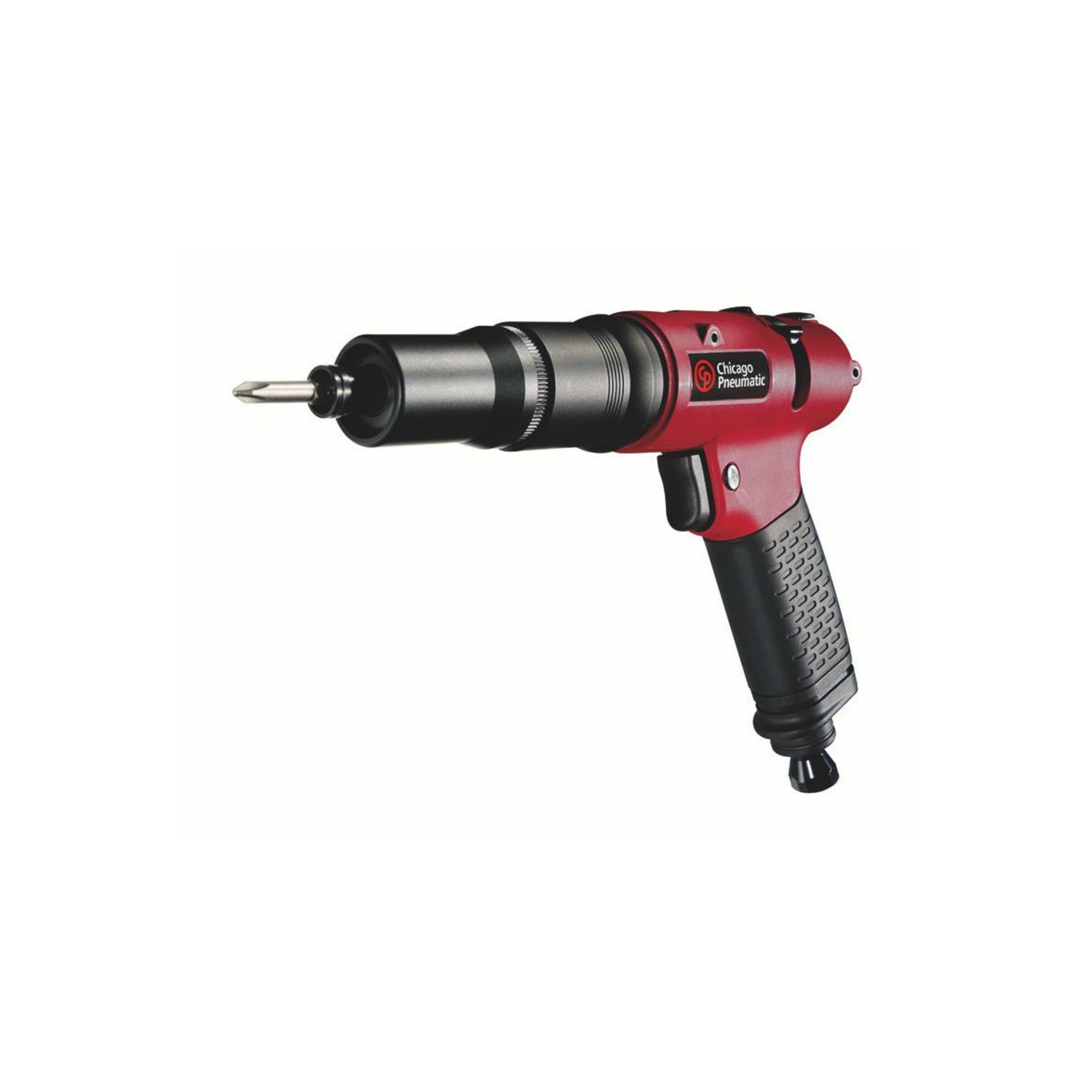

    1/4" Hex pistol shut off reverse pneumatic screwdriver

    The CP2611 is a pistol 1/4" hex pneumatic screwdriver offering keyless torque setting with color rings and a shut-off clutch for accurate tightening.
    Operator comfort is ensured with its limited noise level and 3 pneumatic inlets to ensure vertical and horizontal applications.
    Country of origin is TW. Customs tariff is 84671190

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max torque in forward 7.5 Nm
      Min torque in forward 1 Nm
      Torque Control System Shut-off pneumatic valve

      Design & Functions
      Adjustment Rotative ring
      Body Composite
      Clutch housing Steel
      Clutch Type Ball clutch
      Handle type Pistol
      Main Material type Composite
      Output drive size (in) 1/4
      Output drive type Hex
      Output retainer type Quick change
      Reversible Yes
      Starting system Trigger

      Speed
      Free Speed 1000 rpm
      Air consumption at free speed 10 l/s

      Air information
      Air inlet thread size (in) 1/4
      Air inlet thread type NPT
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Size & Weight
      Height (H) 175 mm
      Length (L) 235 mm
      Weight 1.1 kg

      Noise & vibrations
      Sound Power 91 dB(A)
      Sound Pressure 80 dB(A)
      Vibration (m/s²) <2.5
      Weight 1.41 kg
      Dimensions 29.5 × 16.3 × 6.5 cm
