| Torque | |
|---|---|
| Max working torque fwd | 2710 Nm |
| Max torque reverse | 4880 Nm |
| Min working torque fwd | 815 Nm |
| Torque limited | No |
| Air Information | |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 19 mm |
| Noise & Vibrations | |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Uncertainty vibration-K | 11.8 m/s² |
| Vibration | 21.8 m/s² |
| Speed | |
| Free Speed | 3500 rpm |
| Air consumption at free speed | 51 l/s |
| Size & Weight | |
| Length (L) | 420 mm |
| Side to Center | 54 mm |
| Weight | 15.6 kg |
| Design & Functions | |
| Blow per minute | 960 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mechanism | 2-jaws |
| Output drive size (in) | 1-1/2 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Trigger |
CP6120-D35H
Part No: 6151590120

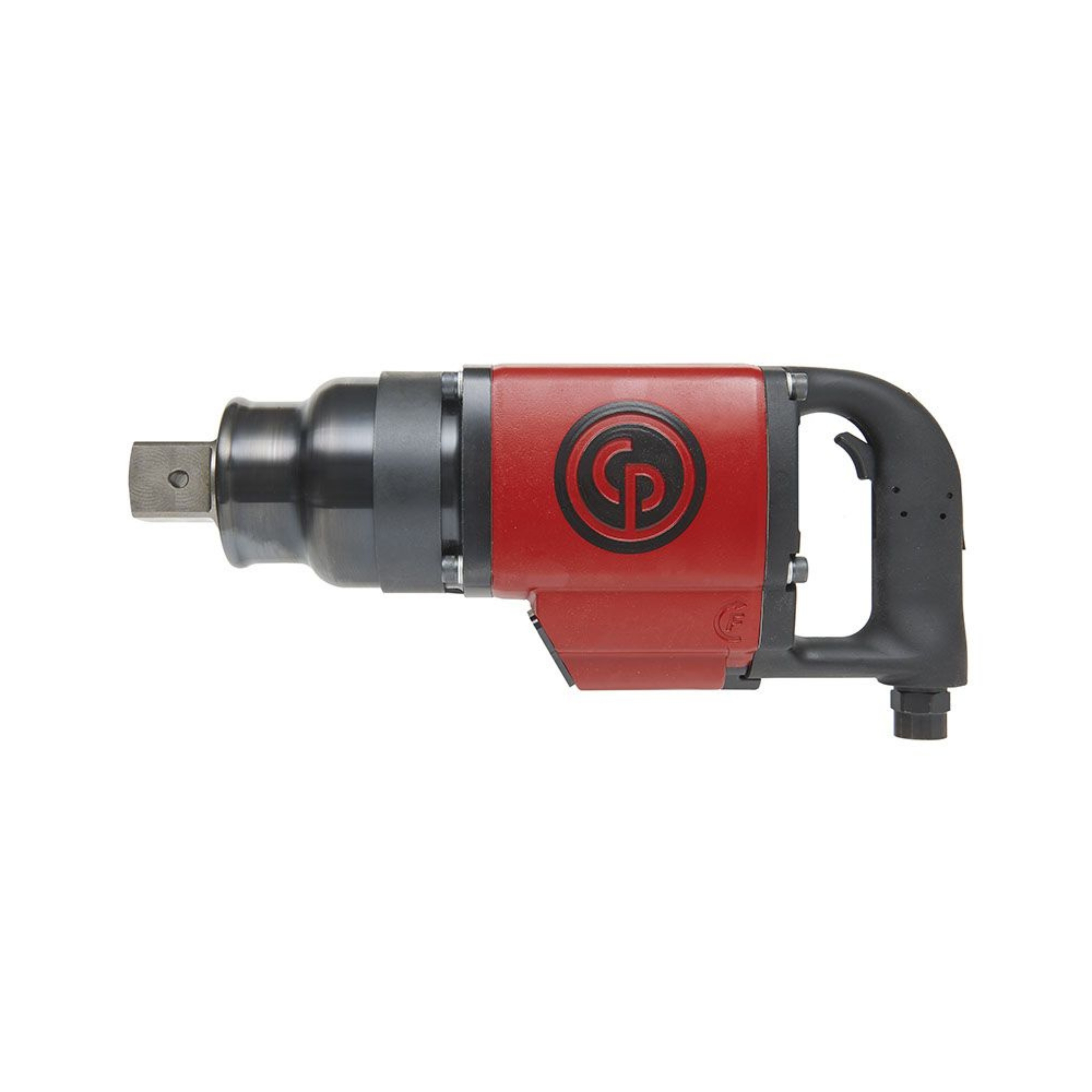

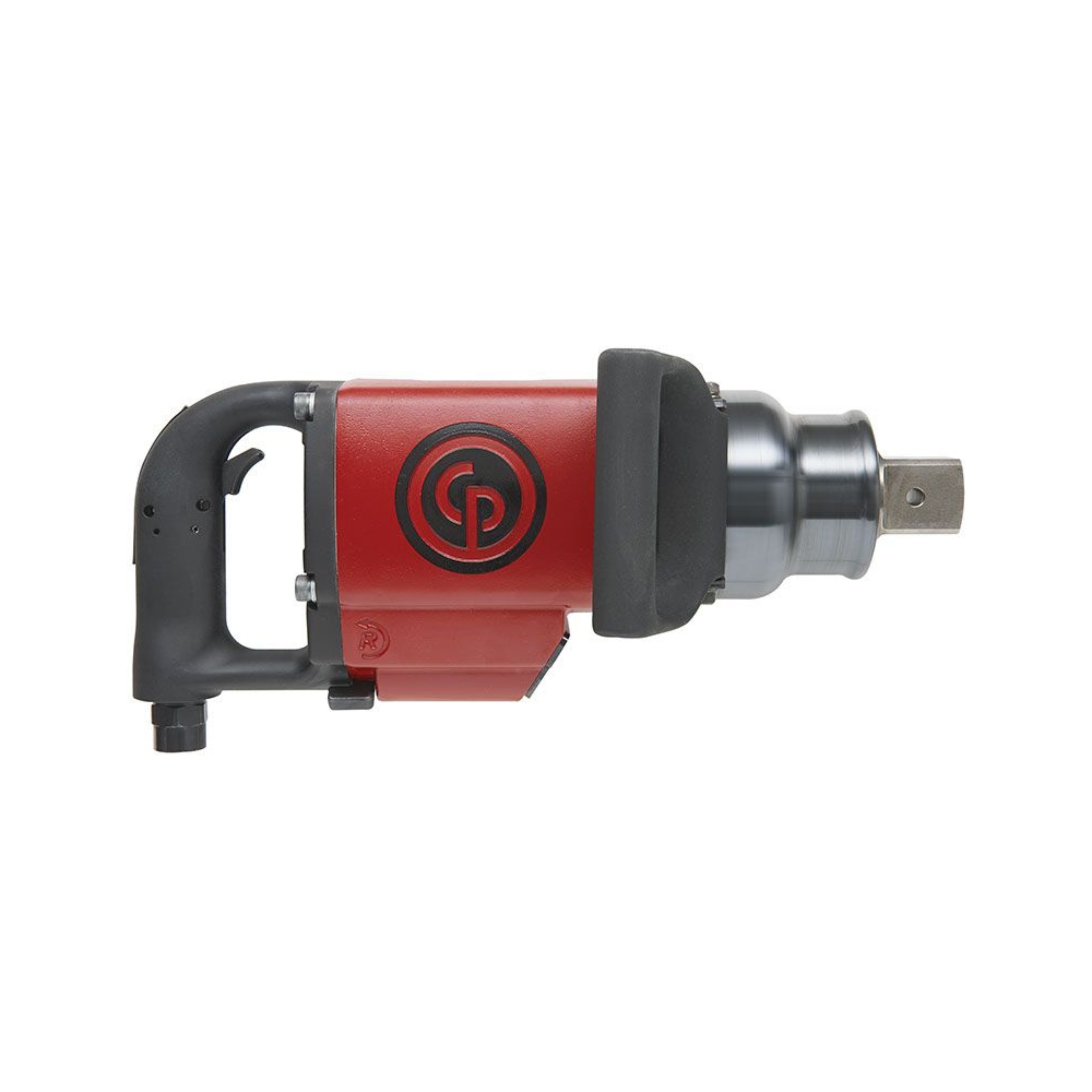

1-1/2″ D-handle pneumatic impact wrench
Improve assembly quality with this 1-12″/#5 impact wrench. With a heavy-duty 2-jaw clutch mechanism, an aluminium body, and a steel clutch housing, this tool is designed for comfort and durability. Delivers reverse torque up to 4,880 Nm / 3,600 ft.lb. The CP6120 series is based on 2 models, hole or spline socket retainer.Country of origin is JP. Customs tariff is 84671190
