CP6300 RSR 2
CP6300 RSR 2

CP6300 RSR

    T025285

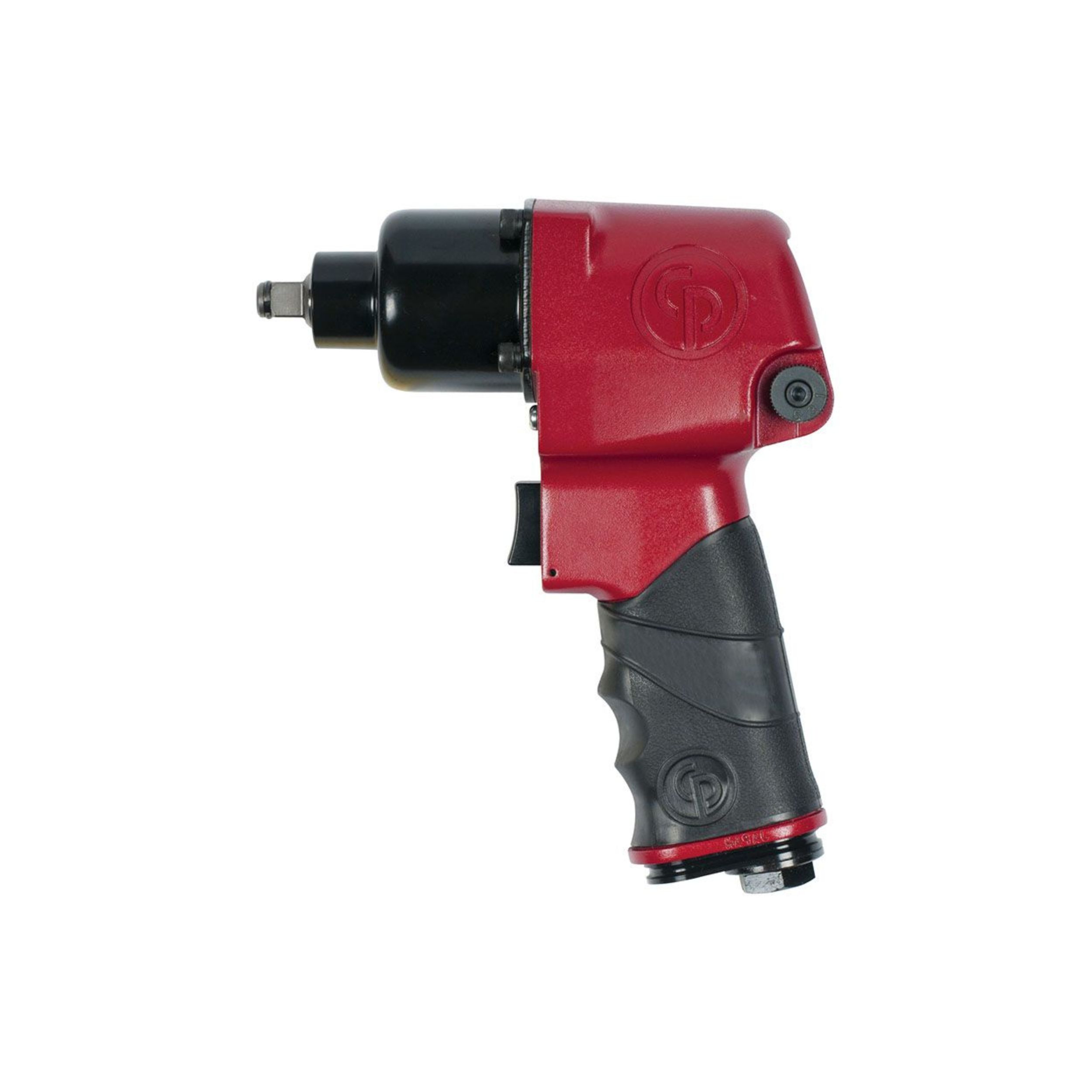

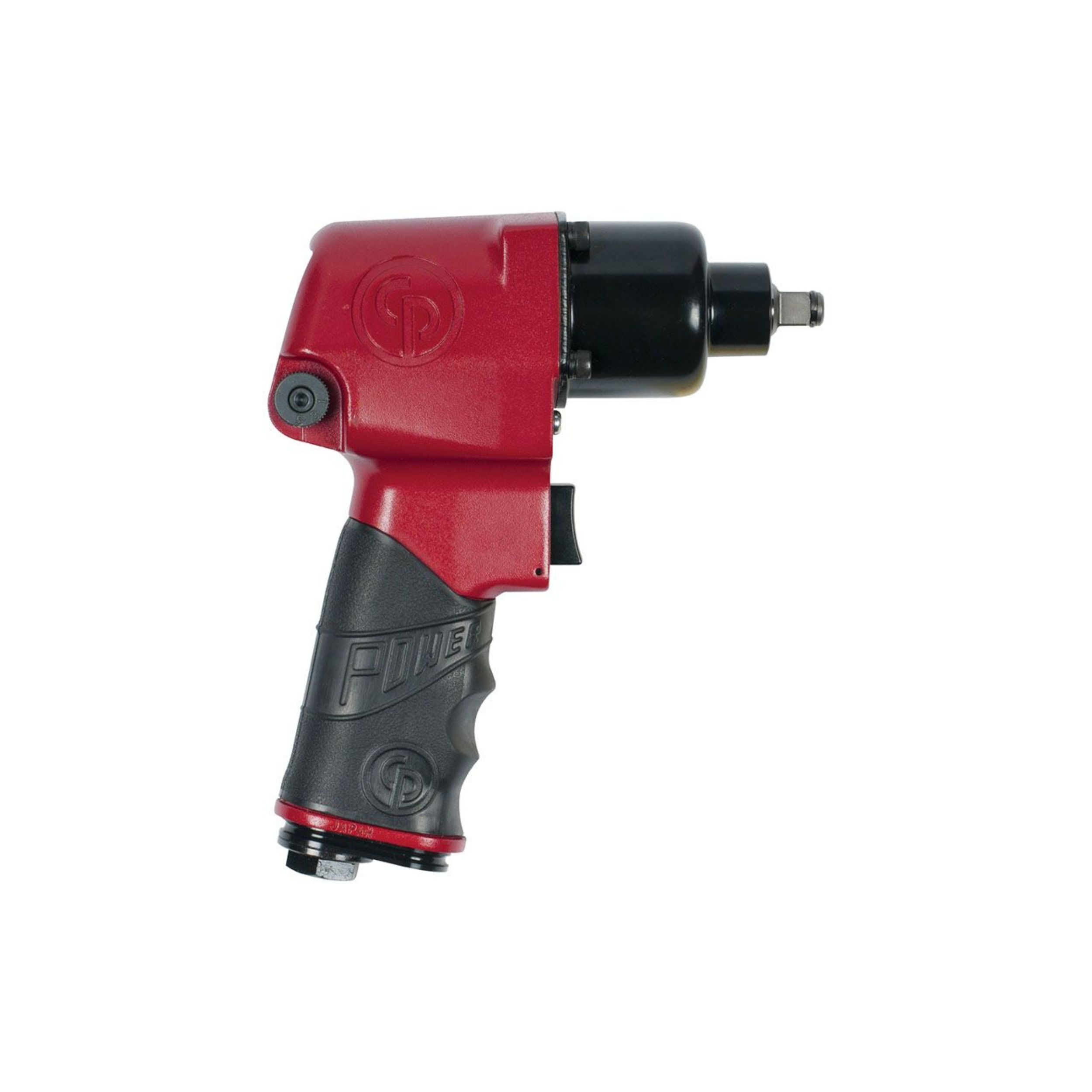

    3/8″ Pistol pneumatic impact wrench

    Enjoy the benefits of this rugged and efficient 3/8″ impact wrench, designed with the powerful single hammer clutch mechanism, aluminium body, and steel clutch housing. The CP6300-RSR is a lightweight tool that provides max reverse torque up to 243 Nm / 180 ft.lb. This tool is designed to operate in assembly and disassembly applications in a variety of industrial environments. The CP6300-RSR series also has a ring socket retainer. Country of origin is JP. Customs tariff is 84671190

    Included Items
    3/8″ Pistol pneumatic impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 203 Nm
      Max torque reverse 243 Nm
      Min working torque fwd 54 Nm
      Torque limited No

      Air information
      Air inlet thread size (in) 1/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (5 m hose length) 10 mm

      Noise & vibrations
      Sound Power 101 dB(A)
      Sound Pressure 90 dB(A)
      Uncertainty vibration-K 1.6 m/s²
      Vibration (m/s²) 5
      Vibration 5 m/s²

      Speed
      Free Speed 6800 rpm

      Size & Weight
      Length (L) 152 mm
      Power weight ratio 150 Nm/kg
      Side to Center 32 mm
      Weight 1.6 kg

      Design & Functions
      Blow per minute 1800
      Body Aluminum
      Clutch housing Steel
      Clutch lubrication type Grease
      Handle type Pistol
      Impact mecanism Single hammer
      Output drive size (in) 3/8
      Output drive type Sq
      Output retainer type Friction ring
      Starting system Trigger
      Weight 1,74 kg
      Dimensions 25,5 × 7,2 × 25,6 cm
