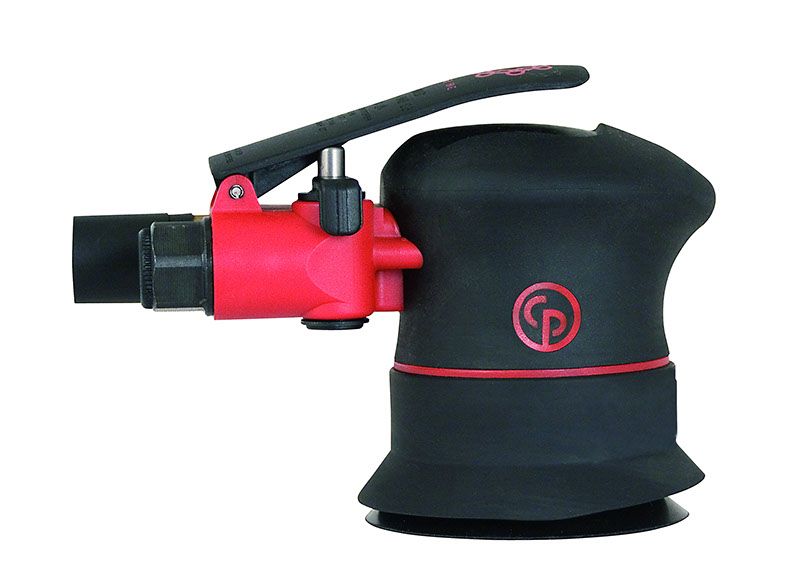

CP7225-3

    3″(75Mm) pneumatic orbital sander
    Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 3″ (75mm) / 6″ (150mm) pneumatic orbital sander (3/32″ – 2.5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 8 models: 4x Non Vacuum (NV) model (Hook & Loop and PSA pad), 1x Self Vacuum (SV) model (Hook & Loop pad) and 3x Central Vacuum (CV) model (Hook & Loop and PSA pad*). *PSA pad not available for all references.
    Country of origin is TW. Customs tariff is 84671110

    SEND INQUIRY
    SKU: 8941072257 Category:

      Technical Specifications

      Speed
      Free Speed 12000 rpm
      Air consumption at free speed 5 l/s
      Overspeed shut-off No

      Power
      Max power 210 W

      Noise & vibrations
      Sound Power 87 dB(A)
      Sound Pressure 76 dB(A)
      Uncertainty vibration-K 1.3 m/s²
      Vibration 2.5 m/s²

      Air information
      Air consumption at load 7.8 l/s
      Air inlet thread size (in) 1/4
      Air inlet thread type NPT
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Size & Weight
      Height (H) 100 mm
      Length (L) 145 mm
      Width (W) 80 mm
      Weight 0.63 kg

      Design & Functions
      Abrasive Pad Attachment PSA
      Autobalancer No
      Circular Abrasive Pad Size (in) 3
      Circular Abrasive Pad Size (mm) 75
      Exhaust Rear
      Main Material type Aluminium, Composite over-sleeve
      Orbit Size (in) 3/32
      Orbit Size (mm) 2.5
      Orbit type Random
      Output Spindle Thread 5/16-24 UNF
      Pad holes number 0
      Pad type Foam
      Rotative inlet No
      Starting system Lever
      Vacuum Non vacuum
      Weight 1,03 kg
      Dimensions 26 × 17 × 10 cm
