CP7763D-6

8941077637

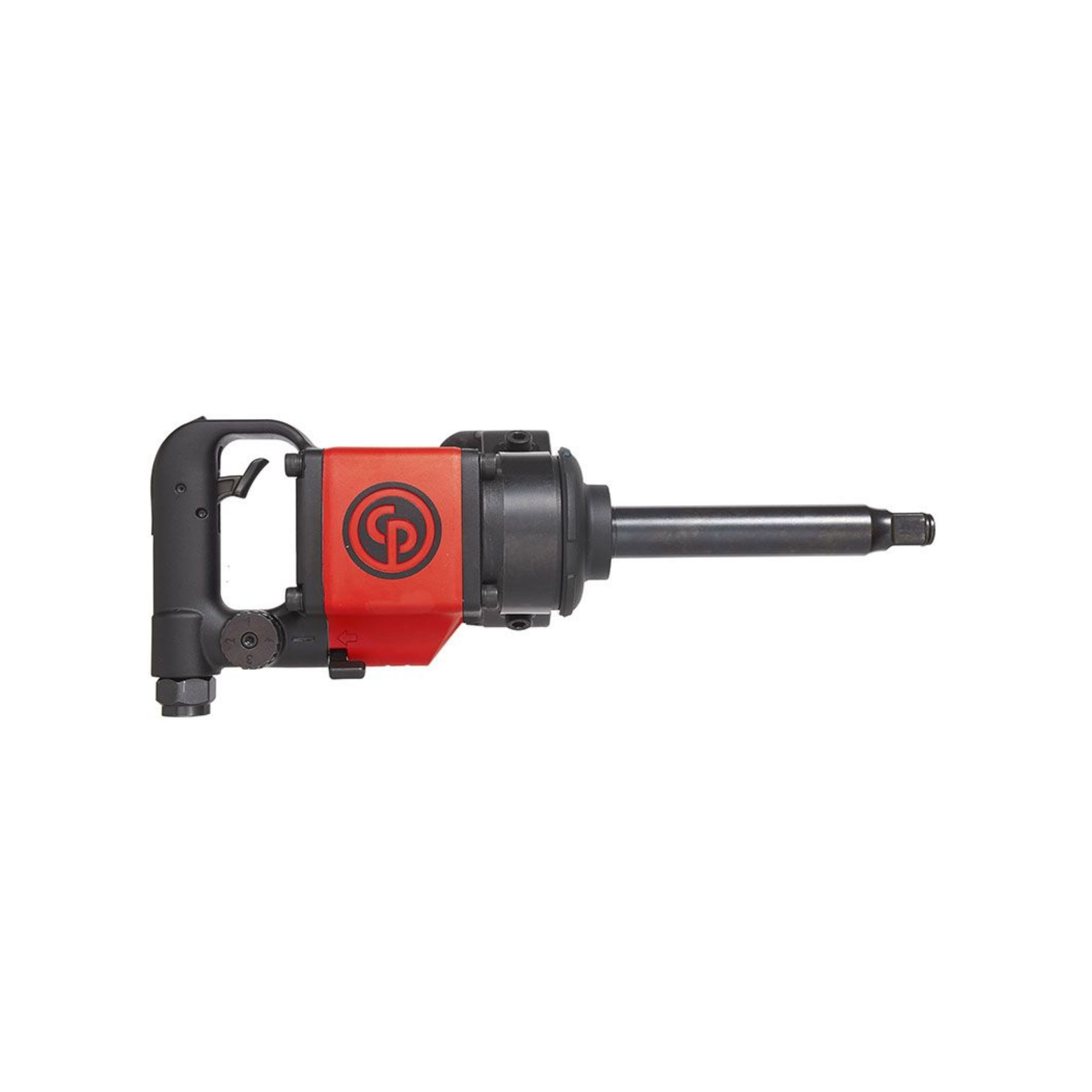

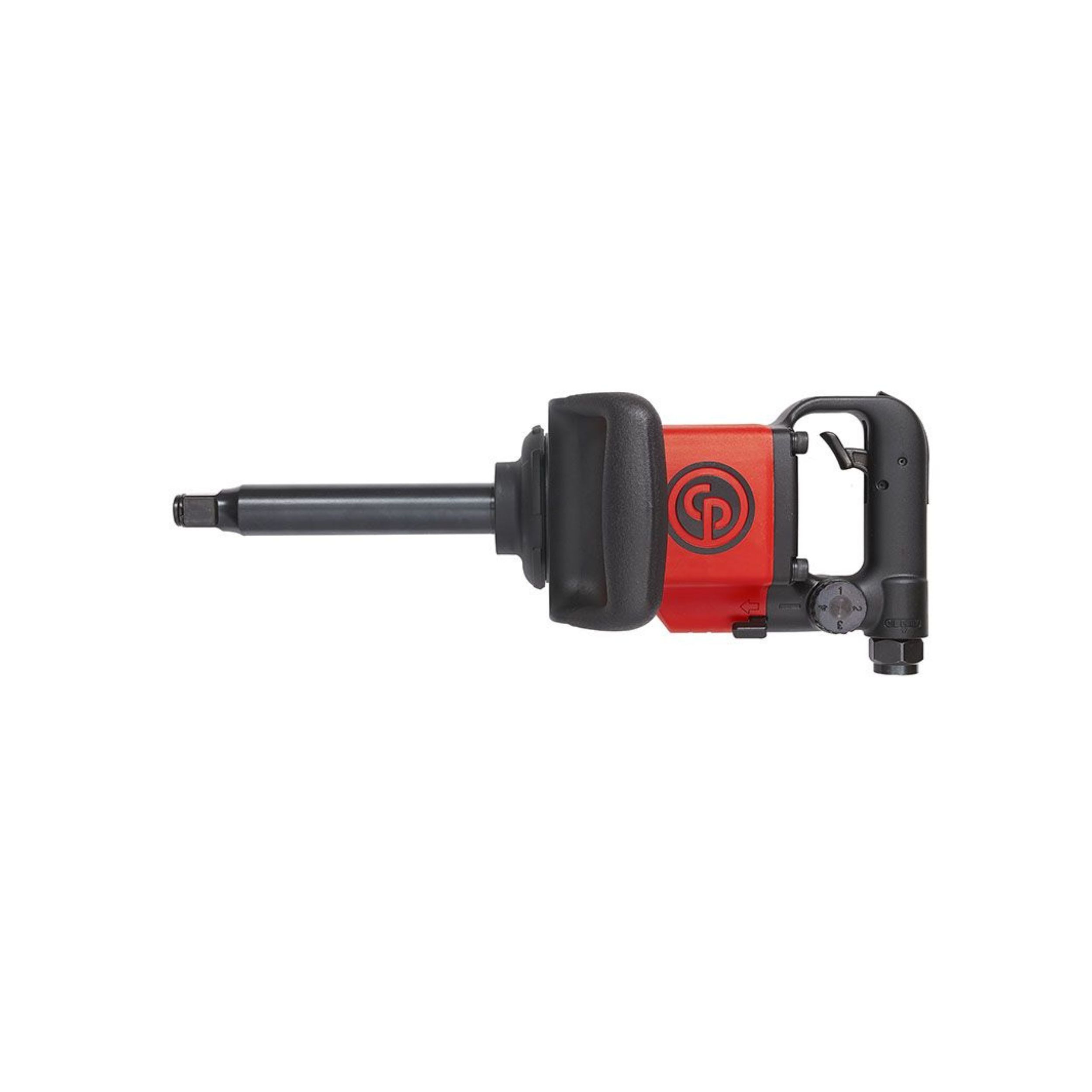

3/4″ Pneumatic impact wrench

The CP7763/CP7773 Series impact wrench features 3/4″ and 1″ square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing, its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4″ pistol short anvil, 3/4″ pistol long anvil, 3/4″ D-handle short anvil, 3/4″ D-handle long anvil (6″ anvil), 1″ D-handle short anvil, and 1″ D-handle long anvil (6″ anvil). Country of origin is TW. Customs tariff is 84671190

Included Items
3/4″ Pneumatic impact wrench (x1)

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 1450 Nm
Max torque reverse 1760 Nm
Min working torque fwd 340 Nm
Torque limited No

Air information
Air inlet thread size (in) 1/2
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 109 dB(A)
Sound Pressure 98 dB(A)
Uncertainty vibration-K 3.3 m/s²
Vibration (m/s²) 12
Vibration 12 m/s²

Speed
Free Speed 6600 rpm
Air consumption at free speed 26 l/s

Size & Weight
Length (L) 445 mm
Side to Center 45 mm
Weight 7.3 kg

Design & Functions
Body Composite
Clutch housing Aluminum
Clutch lubrication type Grease
Handle type D-handle
Impact mecanism Twin hammer
Output drive size (in) 3/4
Output drive type Sq
Output retainer type Friction ring
Side handle Yes
Starting system Trigger
Weight 8,16 kg
Dimensions 48 × 19 × 13 cm
