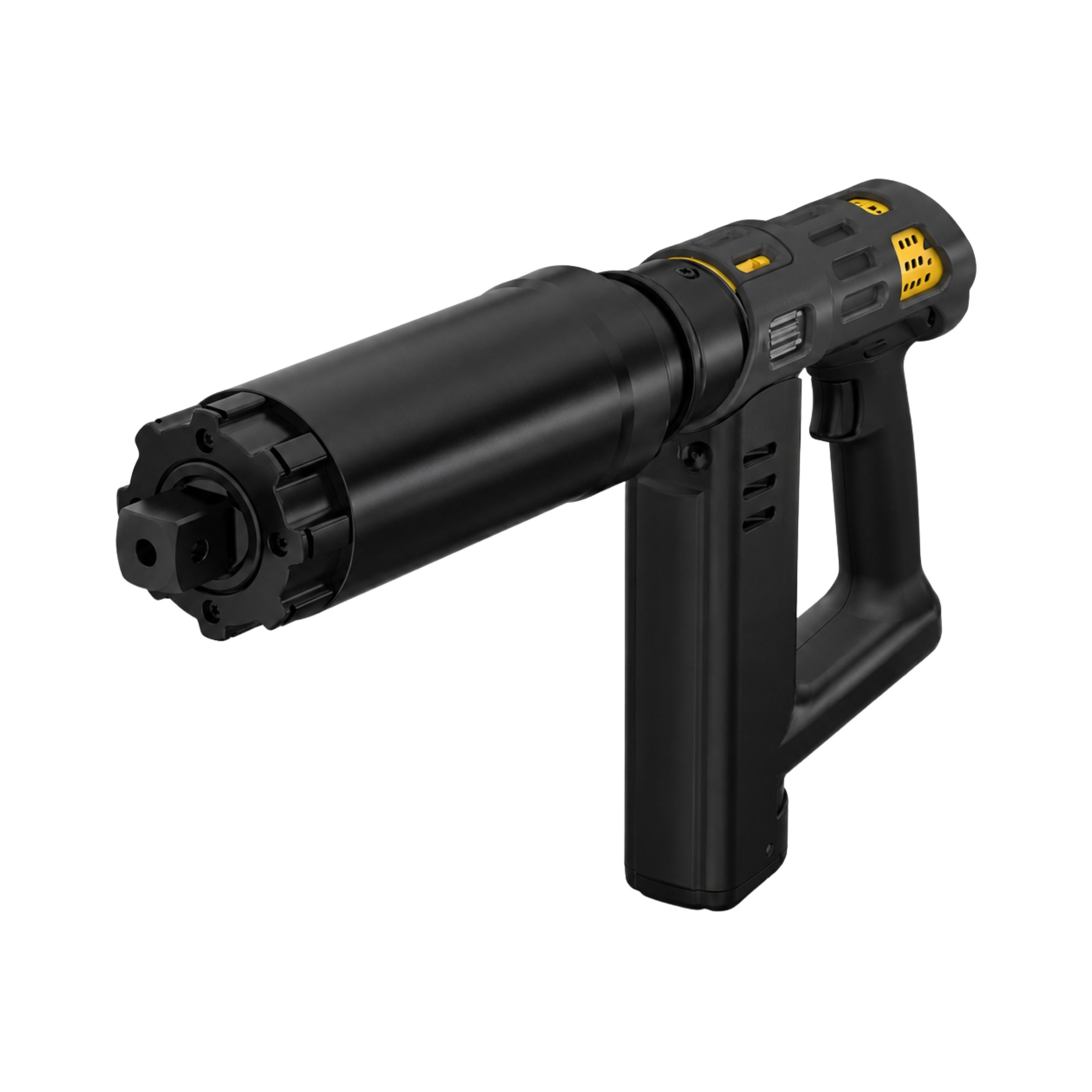

The Atlas Copco ETP ST101-1300-20-F-HA is a high-torque industrial electric assembly tool designed for precise and repeatable fastening operations in demanding production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across professional industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | ST Revo |
| Square Drive | 3/4 inch |
| Spline/Mounting | Wave 40 |
| Torque | |
|---|---|
| Torque Range Min | 390 Nm |
| Torque Range Max | 1,300 Nm |
| Torque Range Min | 288 ft lb |
| Torque Range Max | 959 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 65 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 348 mm |
| CS Distance | 34 mm |
| Weight | 6.4 kg |
| Weight | 14.1 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | No |
| KC ID | na |
| EC Standard | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETP ST101-1300-20-F-HA is a high-torque pistol-grip electric assembly tool designed for precise and repeatable fastening operations where substantial tightening force, controlled torque and reliable process performance are required. With a torque range of 390–1,300 Nm, a 3/4 inch square drive and an operating speed of 65 r/min, this model is suited to demanding professional industrial assembly environments.
Its Tensor ST Revo configuration, 1,500 W motor and robust pistol design make the ETP ST101-1300-20-F-HA suitable for heavy-duty fastening tasks where consistent tightening results, dependable torque control and reliable operation are essential.
Key Features
- High-torque pistol-grip electric assembly tool configuration
- Tensor ST Revo platform for controlled industrial fastening
- Torque range from 390 to 1,300 Nm (288–959 ft lb)
- Operating speed of 65 r/min
- 3/4 inch square drive for demanding fastening operations
- 1,500 W motor with 200 V three-phase AC supply
- Tool weight of 6.4 kg (14.1 lb)
- Overall length of 348 mm
- CS distance of 34 mm
- Wave 40 spline/mounting configuration
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC and EAC certified
Why Choose the Atlas Copco ETP ST101-1300-20-F-HA?
The ETP ST101-1300-20-F-HA combines a broad 390–1,300 Nm torque range with a 3/4 inch square drive, providing the fastening capacity required for demanding industrial assembly operations. Its Tensor ST Revo configuration supports precise and repeatable tightening where process consistency and dependable torque performance are important.
The 65 r/min operating speed provides controlled performance for high-torque fastening, while the 1,500 W motor supplies the power required for demanding production tasks. With a 348 mm overall length, 6.4 kg weight and Wave 40 mounting configuration, this model is designed for professional assembly environments requiring robust and consistent fastening performance.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, drive size, tool configuration and application needs.
Atlas Copco ETP ST101-1300-20-F-HA Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP ST101-1300-20-F-HA in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
