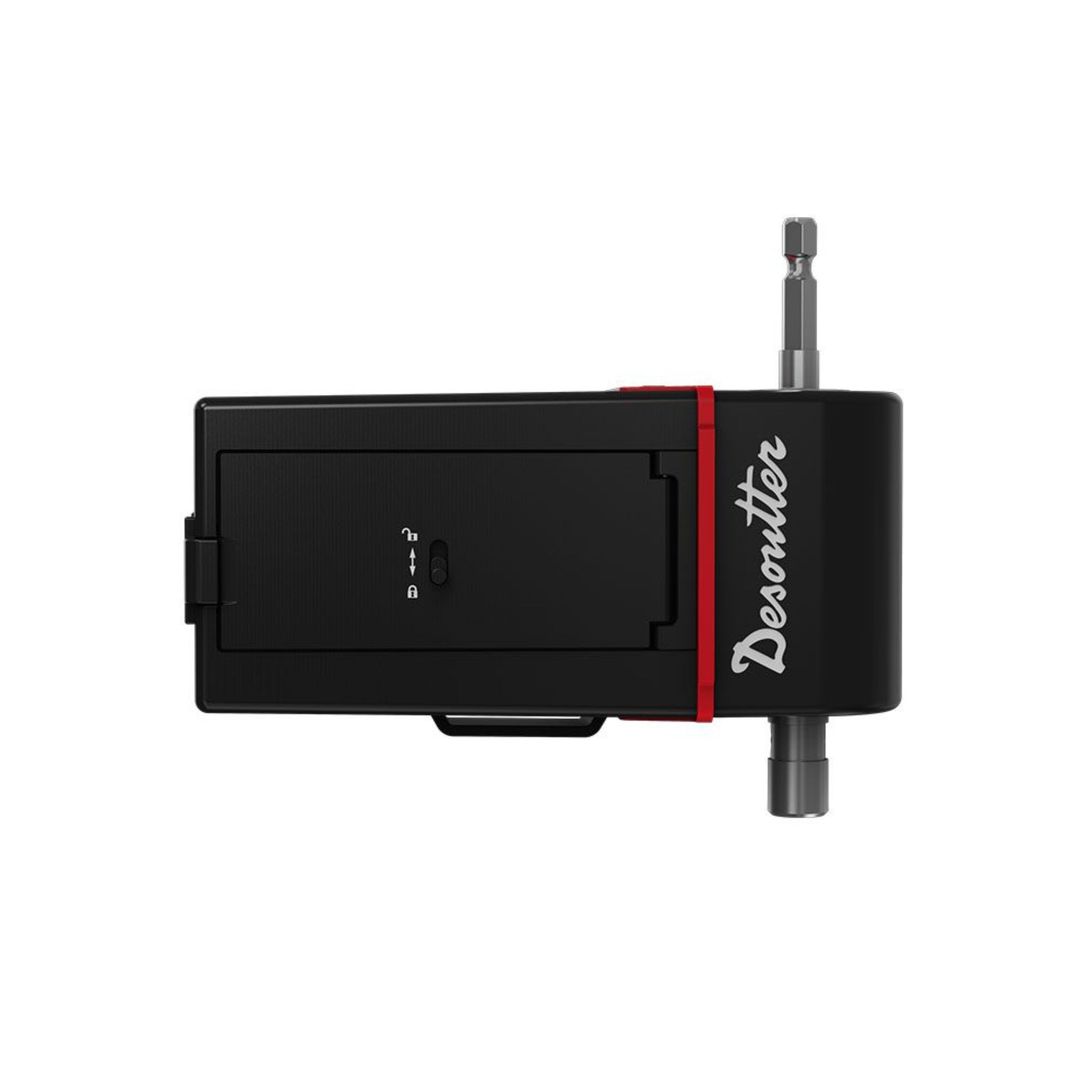

Wireless rotary transducer – 0.4 Nm to 4 Nm – Output 1/4” Hexagonal
User friendly wireless rotary transducer, WRT 4 communicates via an easy-to-use web interface. Captures torque & angle data along with the trace for your quality control, up to 4 Nm, with an output Hex 1/4. No additional hardware required, making tool verification and calibration easy increasing your uptime. For use with a wide range of tools: click-wrenches, slip-wrenches, pneumatic tools, direct drive nutrunners and Pulse tools. The new design improves accuracy & durability. Battery duration is approximately 8 hours. Battery included.
| Torque | |
|---|---|
| Max Torque capacity | 3 ft.lbf |
| Min Torque capacity | 0.3 ft.lbf |
| Overload torque | 3.5 ft.lbf |
| General | |
|---|---|
| Family | Torque transducers |
| Design & Functions | |
|---|---|
| Accuracy | ±0.5% of reading value |
| Measurand | Torque & Angle |
| Output drive size (in) | 1/4 |
| Output drive type | Hex |
| Signal Type | Digital |
| Tranducer Type | Rotary |
| Size & Weight | |
|---|---|
| Height (H) | 1.77 in |
| Length (L) | 4.56 in |
| Width (W) | 5.44 in |
| Weight | 2.87 lb |
| Speed | |
|---|---|
| Max free speed | 10000 rpm |
| Weight | 1.3 kg |
|---|---|
| Dimensions | 23.7 × 17.3 × 11.3 cm |
