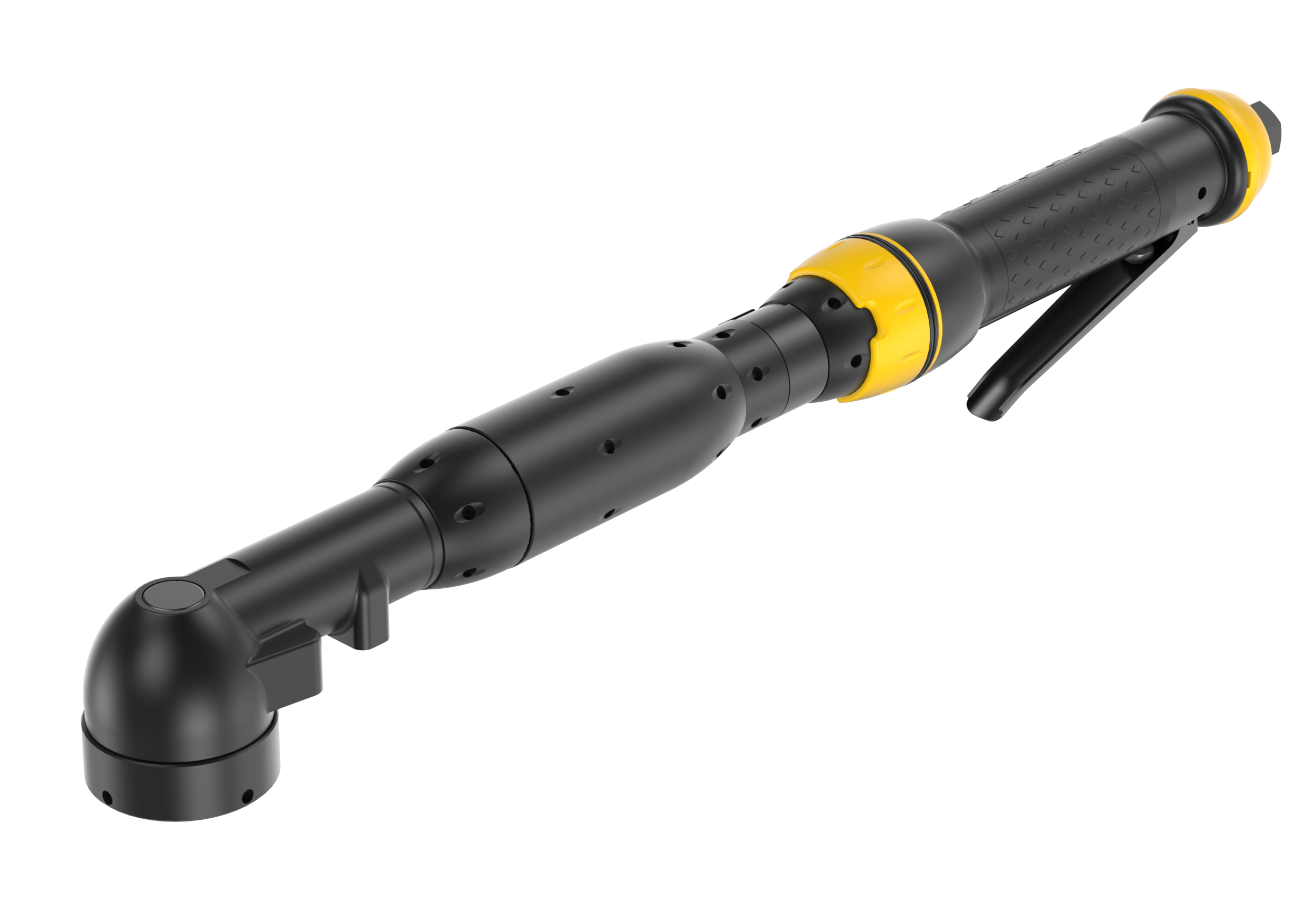

LTV39-2 R200-FS
8431 0634 63
- Bolt size : M14 mm
- Square drive : 1/4 inch
- Torque range soft joint min : 110 Nm
- Torque range soft joint max : 200 Nm
- Free speed : 120 r/min
- Weight : 3.2 kg
- Weight : 7.1 lb
- Length : 505 mm
- Angle head height : 47 mm
- Angle head centre to side : 14 mm
- Air consumption at free speed : 16 l/s
- Air consumption at free speed : 34 cfm
- Air inlet thread : 1/4 inch
- Sound pressure : 81 dB(A)
- Max working pressure : 7 bar
- Max working pressure : 100 psig
- Model type : Angle
- Shut-off : Yes
- WEEE : 0
- Reversible : Yes
- Sound power : 92 dB(A)
- Torque range soft joint max : 148 ft lb
- Torque range soft joint min : 81 ft lb
- 10 mm
